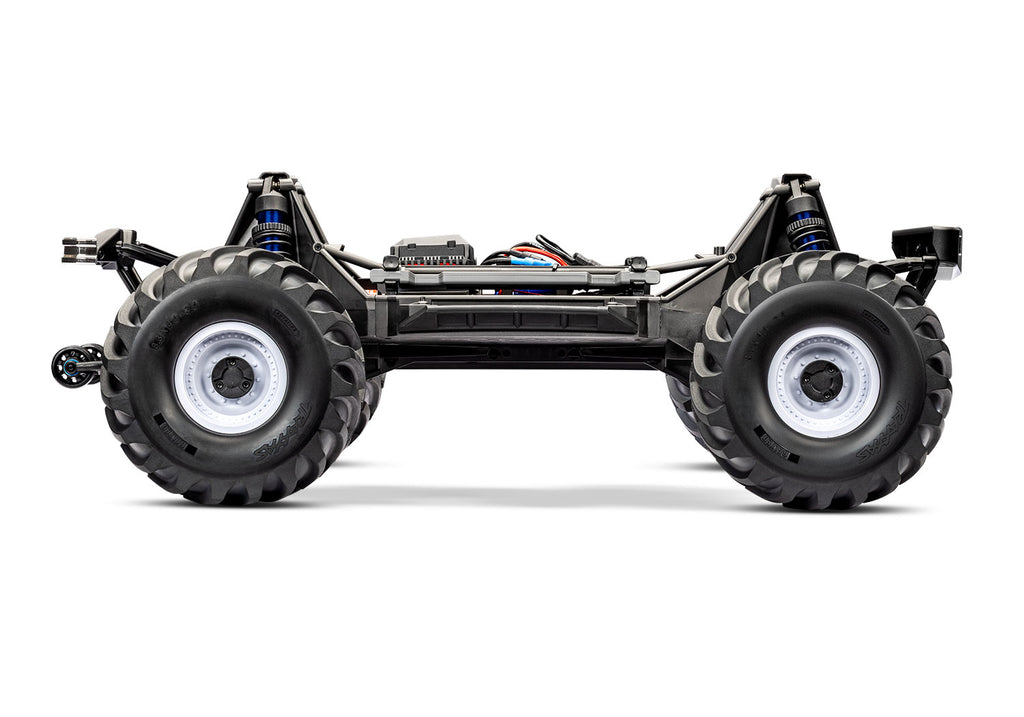

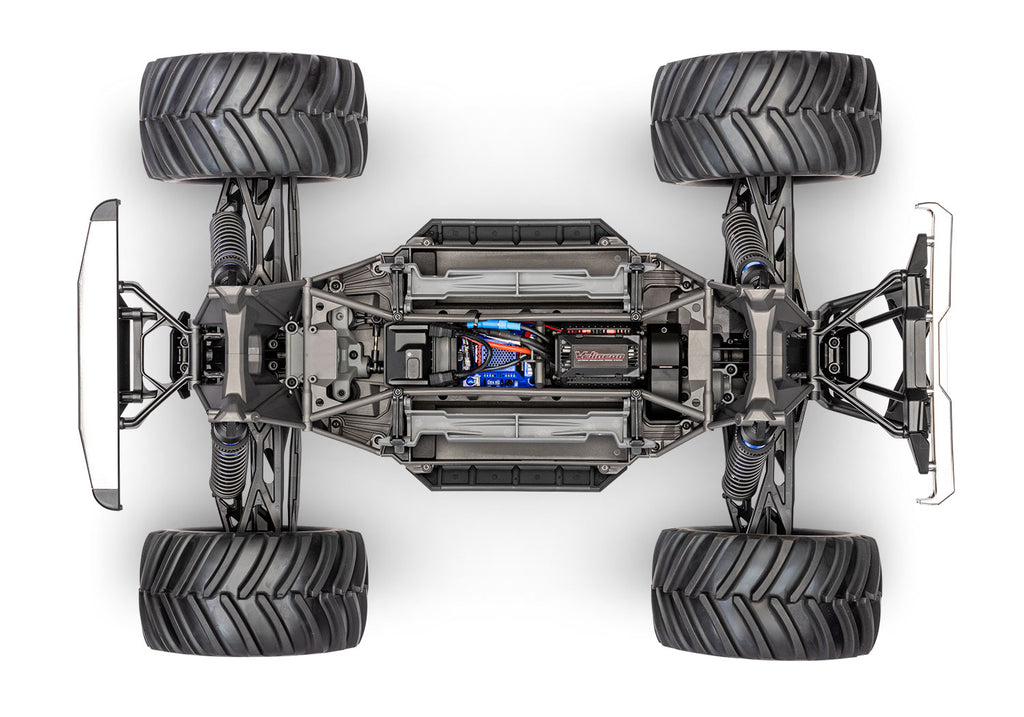

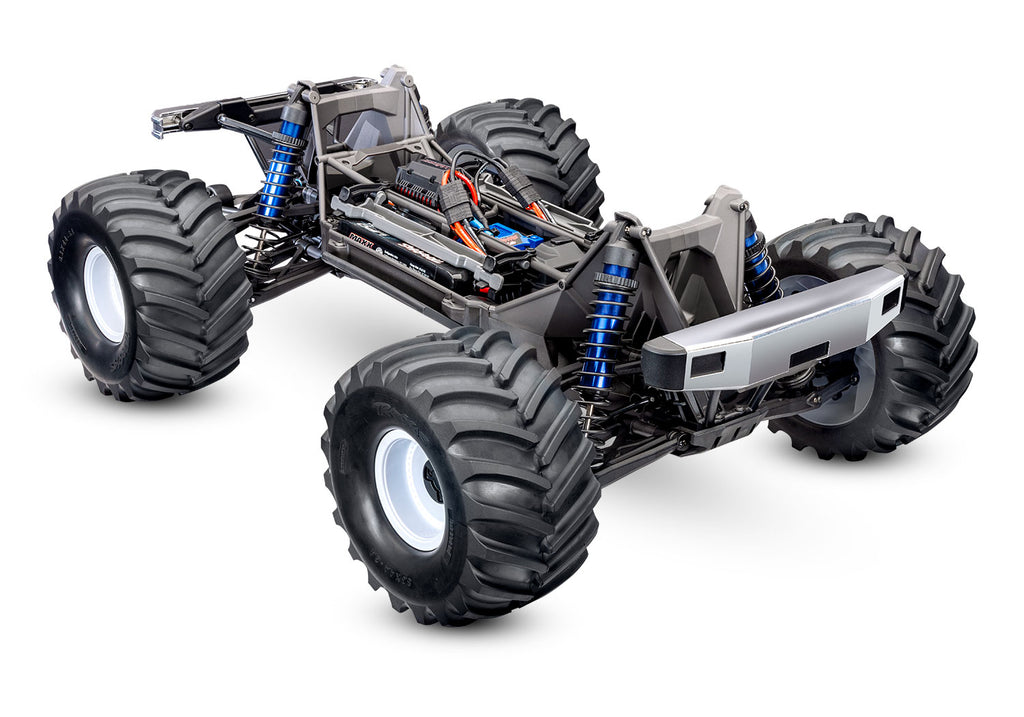

Traxxas 77036-4-WB X-Monster Chassis
$999.95 USD
Skip to product information
Available to order
TraxxasModel 77036-4
X-Monster Chassis
Monster truck chassis · Battery & charger sold separately
- Scale
- X-truck
- Drive
- 4WD
- Power
- Brushless
- Top speed
- 50+ mph
Battery and charger sold separately — see Complete your setup.
$999.95 USD
- Ships in 1–2 business daysIn-stock orders leave Houston, TX by UPS or USPS. Free standard shipping on $99+.
- Free store pickupSouthwest Fwy, Houston. We email when it's ready. Usually ready within 24 hours on days we're open.
- Genuine parts, 30-day returnsEverything comes through authorized dealer accounts. Unopened items can come back within 30 days.
Shipping & pickup
Free standard shipping covers the contiguous 48 states, big trucks included; orders under $99 pay $5.95–$8.95. Tracking is emailed when your order leaves. Batteries ship ground only and can't go to P.O. boxes, APO/FPO, Alaska or Hawaii. Full shipping policy
Picking up in Houston? Choose Pick up at checkout and wait for our ready-for-pickup email.
Returns
30 days from delivery on new, unopened items. Opened-but-unused items may carry a 15% restocking fee; batteries, chargers, powered electronics and painted bodies are final sale once opened. Full refund policy
Warranty & support
Everything we sell is genuine and covered by the manufacturer's warranty (Traxxas, Horizon Hobby and the other brands we carry). If something arrives defective, contact us within 7 days and we'll make it right. Fitment or upgrade questions? Call 832-288-4789 or email support@rchobbyshop.com.
Part # 77036-4-WB · Traxxas model 77036-4
Complete your setup
Everything the X-Monster Chassis needs to run
The X-Monster Chassis runs on two 4s LiPo packs. Battery and charger are sold separately. It also needs a body, sold separately. Choose how you want to cover them; nothing goes in your cart until you press Add.
Optional extras are never added for you: Upgrades for the X-Monster Chassis
Overview
X-Maxx has grown stronger and more powerful with each generation. The X-Monster Chassis incorporates the latest upgrades to create an incredibly strong platform.
The new X-Monster Chassis combines the legendary power and durability of X-Maxx with even more strength, larger size, and a new series of replica monster truck bodies.
New belted chevron-pattern monster truck tires deliver outstanding traction for jaw-dropping acceleration and 50+ mph speed with the authentic scale looks of a real monster truck.

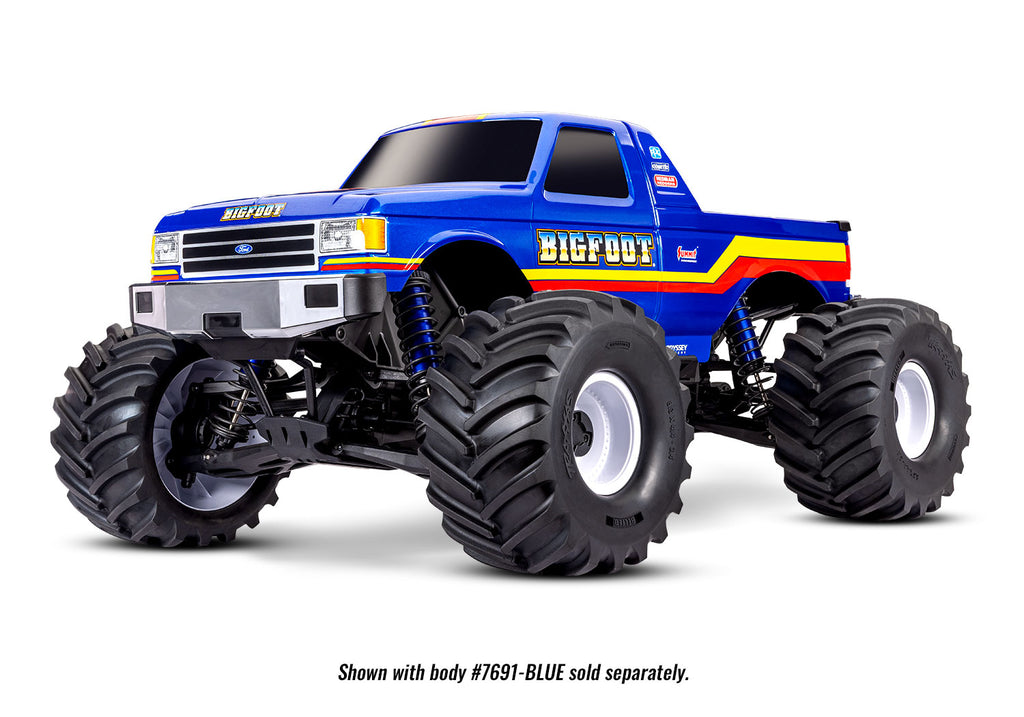

Choose your favorite Ford or Chevy body (sold separately) and unleash 30+ volts of extreme 8S power!
Read more Show less
Features
- 50+ mph with Two 4s LiPo Batteries and Included Optional Pinion Gear
- Choose from Several Clipless Monster Truck Bodies (sold separately)Quick one-hand installation and removal; Pivoting rear latch mechanism; Eliminates body posts and clips; Reinforced for extra protection
- VXL-8s™ Waterproof Electronic Speed Control8s LiPo compatible; Built-in cooling fan; Machined heat sinks; 10-gauge silicone wire; Integrated protection circuits; LED status lights
- Velineon® 1200XL Brushless Motor4-pole 1275 Kv; 5 mm output shaft; Aluminum slip-on heat sink; Dual motor cooling fans
- Traxxas Stability Management® (TSM)Helps prevents spinouts and loss of control; Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4 GHz High Output Radio SystemTraxxas Link™ enabled; 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports; Automatically stores and loads settings for up to 30 Traxxas Link-enabled models; Multi-Function knob; Adjustable steering and throttle percentage (dual rates); Adjustable steering and throttle sensitivity; BEC Voltage and Motor Temperature Sensor installed
- 8s DrivelineSteel pinion and spur gear; Full-time shaft-driven 4-wheel drive; Heavy-duty steel CV driveshafts; Beefed-up steel differential output cups; Splined aluminum center driveshaft; Machined aluminum stub axles; Torque-Biasing Center Drive™ absorbs shocks and distributes power to all four wheels; 24 mm splined wheel hexes; Sealed, silicone fluid-filled diffs with large module ring and pinion gears
- Fixed Motor Mounting SystemPreset gear mesh adjustments; No manual adjustments required; Motor retention separate from gear mesh
- Heavy-Duty Modular Composite ChassisInterlocking front and rear bulkheads; Motor mounts to rear bulkhead to eliminate gear crunching flex; Easy to service and access components; Driveline is sealed in the chassis to keep out dirt and grit
- Snap-Lock Battery Retention SystemNo body clips or hook and loop straps; Battery hold-downs pivot for easy access; Adjustable for battery size; More secure than conventional retention systems; Integrated into chassis top brace for improved battery tray and chassis stiffness
- Bumpers & Skid PlatesFront energy absorbing rubber impact cushion; Lower front and rear skids for impact and abrasion resistance; Integrated nerf bars for side impact resistance
- Steering2085XL high-output metal-gear steering servo with 450 oz-in torque and aluminum cooling fins; Fully-supported case mounting; Double-shear, bearing supported servo horn
Show all 15 features Show fewer features
- SuspensionHeavy-duty suspension arms with double-shear connections; High strength steel suspension pins used throughout; Captured outer lower suspension pins with locknuts; C-hub and steering block geometry maximizes steering angle; Adjustable roll center; Steel upper and lower tie bars; Full contact sealed bearings used in exposed locations
- Aluminum GTX™ ShocksMachined aluminum threaded body; Extra-large bore and capacity; 5.2 mm damper shaft; Lower seal cartridge includes integrated wiper seal combination; Adjustable upper spring retainer; Plastic shock caps with pivot balls; Fixed shock locations; Lower spring perches bolted on
- Wheels & TiresDual-profile white monster truck wheels with replica military-style axle hubs; Huge 8.6" belted Terra Groove monster truck tires with super-soft rubber compound for exceptional grip; Internal belting virtually eliminates ballooning
What's in the box
- X-Monster Chassis with Traxxas Big Block™ brushless motor
- VXL-8s waterproof electronic speed control with integrated telemetry
- Optional high speed pinion gear
- TQi 2.4 GHz radio system
- High quality maintenance tools
What you'll need
- Body Select your X-Monster body from one of several available options.
- Batteries Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries (2890X) or the Dual 4s Completer Pack (2997).
- Charger Traxxas EZ-Peak® Live Dual 4s-capable charger (2973) is recommended for easy and fast charging performance.
- AA Alkaline Batteries Four AA alkaline batteries for the transmitter.
Specifications
| Type | Monster Truck |
|---|---|
| Speed | 50+ mph with two 4s LiPo batteries and optional speed gear (sold separately) |
| Skill Level | 6 |
| Scale | X-Truck® |
| Weight | 19.1 pounds (8.66 kg) |
| Length | 30.67 inches (779 mm) |
| Width | 21.3 inches (540 mm) |
| Front Track | 21.3 inches (540 mm) |
| Height | 13.99 inches (355 mm) |
| Wheelbase | 18.92 inches (480 mm) |
| Center Ground Clearance | 4.2 inches (107 mm) |
| Drive System | Shaft-driven 4WD |
| Driveline | Shaft-driven 4WD |
| Transmission | Single speed |
| Differential Type | Sealed, hardened steel bevel, limited slip |
| Gear Pitch | 1.0 metric pitch |
| Steering Servo | 2085XL metal gear ultra-high-torque waterproof |
| Radio System | TQi™ 2.4 GHz 2-channel |
|---|---|
| Battery Compartment Specs | 197 mm X 52 mm X 44 mm |
| Motor Name | Velineon 1200XL |
| Motor Type | 1275 Kv sensorless brushless |
| Motor Weight | 23.44 ounces (665 g) |
| Motor Length | 4.32 inches (110 mm) |
| Motor Diameter | 1.88 inches (48 mm) |
| Motor Shaft Size | 5 mm |
| Motor Connector Type | 6.5 mm bullet connectors |
| ESC Name | Velineon® VXL-8s |
| ESC Type | Brushless |
| ESC Case Size | 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm) |
| ESC Weight | 7.60 ounces (215.5 g) |
| ESC Motor Connectors | 6.5 mm bullet connectors |
| ESC Battery Connectors | Traxxas High-Current Connectors |
| ESC Power Wire | 10 gauge Maxx® Cable |
Compare
How the X-Monster Chassis compares
Similar models we carry, side by side.
| Spec | ||||
|---|---|---|---|---|
| Type | Monster Truck | Monster Truck | Monster Truck | Monster Truck |
| Scale | X-Truck | X-Truck | X-Truck | X-Truck |
| Size (L × W × H) | 30.7 × 21.3 × 14.0 in | 30.7 × 21.3 × 14.0 in | 31.4 × 23.4 × 10.2 in | 30.7 × 21.3 × 14.0 in |
| Weight | 19.1 lb | 19.1 lb | 21.03 lb | 22.2 lb |
| Skill level | 6 | 6 | 5 | 6 |
| Top speed | 50+ mphwith two 4s LiPo batteries and optional speed gear (sold separately) | 50+ mphwith two 4s LiPo batteries and optional speed gear | 60+ mphwith dual 4s LiPo batteries and optional gearing | 50+ mphwith two 4s LiPo batteries and optional speed gear (sold separately) |
| In the box | Battery & charger sold separately | Battery & charger sold separately | Battery & charger sold separately | Battery & charger sold separately |
| Runs on | Two 4s LiPo packs | Two 4s LiPo packs | Two 4s LiPo packs | Two 4s LiPo packs |
| Ready to run | $1,504.85completer 2997 + AA | $1,704.85completer 2997 + AA | $1,604.85completer 2997 + AA | $2,104.85completer 2997 + AA |
| Links | You’re here | View | View | View |
Specs as Traxxas prints them. Ready to run = the vehicle + the completer pack (battery and charger in one box) listed for that model + AA batteries for the transmitter, at our prices today; other battery options are on each model’s page. Nitro models also need fuel, bought locally. New to RC? How to read this table
Parts & upgrades
Keep your X-Monster Chassis running.
Genuine Traxxas replacement parts and upgrades, organized by part number.
Traxxas · Model 77036-4
Manuals, parts list & exploded views
X-Monster Chassis · Open the original manufacturer documents, hosted by RC Hobby Shop.
Parts list
User manual
Complete original documents, including safety instructions. Files open in a new tab.
