Traxxas 77097-4 X-Maxx Ultimate
Blue
$1,599.95 USD
Skip to product information
Available to order
TraxxasModel 77097-4
X-Maxx Ultimate
Monster truck · Battery & charger sold separately
- Scale
- X-truck
- Drive
- 4WD
- Power
- Brushless
- Top speed
- 50+ mph
Battery and charger sold separately — see Complete your setup.
$1,599.95 USD
- Ships in 1–2 business daysIn-stock orders leave Houston, TX by UPS or USPS. Free standard shipping on $99+.
- Free store pickupSouthwest Fwy, Houston. We email when it's ready. Usually ready within 24 hours on days we're open.
- Genuine parts, 30-day returnsEverything comes through authorized dealer accounts. Unopened items can come back within 30 days.
Shipping & pickup
Free standard shipping covers the contiguous 48 states, big trucks included; orders under $99 pay $5.95–$8.95. Tracking is emailed when your order leaves. Batteries ship ground only and can't go to P.O. boxes, APO/FPO, Alaska or Hawaii. Full shipping policy
Picking up in Houston? Choose Pick up at checkout and wait for our ready-for-pickup email.
Returns
30 days from delivery on new, unopened items. Opened-but-unused items may carry a 15% restocking fee; batteries, chargers, powered electronics and painted bodies are final sale once opened. Full refund policy
Warranty & support
Everything we sell is genuine and covered by the manufacturer's warranty (Traxxas, Horizon Hobby and the other brands we carry). If something arrives defective, contact us within 7 days and we'll make it right. Fitment or upgrade questions? Call 832-288-4789 or email support@rchobbyshop.com.
Part # 77097-4-BLUEX · Traxxas model 77097-4
Complete your setup
Everything the X-Maxx Ultimate needs to run
The X-Maxx Ultimate runs on two 4s LiPo packs. Battery and charger are sold separately. Choose how you want to cover them; nothing goes in your cart until you press Add.
Optional extras are never added for you: Upgrades for the X-Maxx Ultimate
Overview
X-Maxx® is the truck that redefined Traxxas Tough. X-Maxx Ultimate combines that legendary toughness with almost $900 in aluminum upgrades and performance parts for maximum strength and precision. The 2025 X-Maxx Ultimate goes even further with new bold graphics, upgraded axles, and our most powerful steering servo. Don't miss your chance to own the Ultimate monster truck!

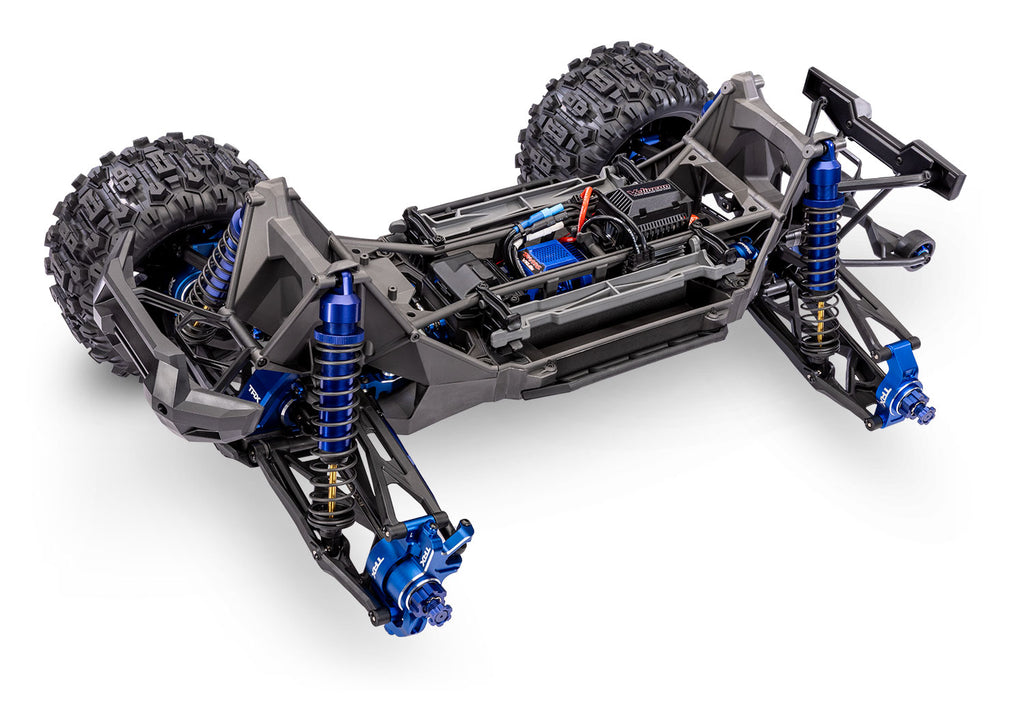

How do you improve the toughest truck ever to wear the Traxxas name? You add aluminum—lots of aluminum! X-Maxx Ultimate receives substantial aluminum upgrades in all key areas of performance: suspension, chassis, drivetrain, and steering to usher in a new era of strength and durability.
A Traxxas Link™ Wireless Module comes standard on X-Maxx Ultimate to take full advantage of its on-board telemetry. The free Traxxas Link app allows you to make micro-adjustments to the transmitter and view real-time telemetry data like speed, RPM, and battery voltage on your mobile device.
X-Maxx Ultimate's belted Sledgehammer® tires deliver game-changing stability and control whether you're slinging mud or setting speed records. The wide, open-block tread design won't clog up with dirt or debris and the lightweight belting maintains the tire's shape for a larger contact patch, more grip, and responsive handling at any speed.
With a staggering 650 oz-in of torque and full steel gears, the High Torque Maxx Servo gives X-Maxx Ultimate complete steering authority on even the largest Sledgehammer tires. The case features an anodized aluminum center section with cooling fins and ball bearings for increased precision.
Read more Show less
Features
- 50+ mph with Two 4s LiPo Batteries and Optional Gearing (sold separately)
- High Performance Aluminum Upgrades6061-T6 aluminum C-hubs, 6061-T6 aluminum steering blocks, 6061-T6 aluminum rear hub carriers, 6061-T6 aluminum differential housings, 6061-T6 aluminum motor mounts
- VXL-8s™ Waterproof Electronic Speed Control8® LiPo compatible, Built-in cooling fan, Machined heat sinks, 10-gauge silicone wire, Integrated protection circuits, LED status lights
- Velineon® 1200XL Brushless Motor4-pole 1275 Kv, 5 mm output shaft, Aluminum slip-on heat sink, Dual motor cooling fans
- Traxxas Stability Management® (TSM)Helps prevents spinouts and loss of control, Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4 GHz 2-Channel Radio System with Wireless ModuleFactory-installed telemetry sensors, 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports, Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Clipless Body Mount SystemQuick one-handed installation and removal, Uses pivoting rear latch mechanism, Eliminates body posts and clips, Reinforced for extra protection
What's in the box
- X-Maxx Ultimate, Ready-To-Race model with Traxxas Big Block™ brushless motor
- VXL-8s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi 2.4 GHz radio system with factory-installed wireless module
- High quality maintenance tools
What you'll need
- Batteries Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries 2890X or the Dual 4s Completer Pack 2997
- Charger Traxxas EZ-Peak® Live Dual 4s-capable charger 2973 is recommended for easy and fast charging performance
- AA Alkaline Batteries Four AA alkaline batteries for the transmitter
Specifications
| Type | Monster Truck |
|---|---|
| Top Speed | 50+ mph with two 4s LiPo batteries and optional speed gear (sold separately) |
| Skill Level | 6 |
| Scale | X-Truck® |
| Weight | 22.20 pounds (9.5 kg) |
| Length | 30.67 inches (779 mm) |
| Width | 21.3 inches (540 mm) |
| Track | 21.3 inches (540 mm) |
| Height | 13.99 inches (355 mm) |
| Wheelbase | 18.92 inches (480 mm) |
| Ground Clearance | 4.2 inches (107 mm) |
| Driveline | Shaft-driven 4WD |
| Transmission | Single speed |
| Differential | Sealed, hardened steel bevel, limited slip |
| Gear Ratio | 8.11 (stock, out-of-box) |
| Gear Pitch | 1.0 metric pitch (Mod 1) |
| Steering Servo | 2085RL metal gear ultra-high-torque waterproof |
| Radio | TQi™ 2.4 GHz 2-channel transmitter with wireless module |
| Battery Compartment | 197 mm X 52 mm X 44 mm |
|---|---|
| Motor Name | Velineon® 1200XL |
| Motor Type | 1275 Kv sensorless brushless |
| Motor Weight | 23.44 ounces (665 g) |
| Motor Length | 4.32 inches (110 mm) |
| Motor Diameter | 1.88 inches (48 mm) |
| Motor Shaft | 5 mm |
| Motor Connector | 6.5 mm bullet connectors |
| ESC Name | Velineon® VXL-8s™ |
| ESC Type | Brushless |
| ESC Case Size | 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm) |
| ESC Weight | 7.60 ounces (215.5 g) |
| ESC Motor Connectors | 6.5 mm bullet connectors |
| ESC Battery Connectors | Traxxas High-Current Connectors |
| ESC Power Wire | 10 gauge Maxx® Cable |
| Tires | Massive 8.4″ Sledgehammer® belted tires |
| Wheels | Large, dual-diameter wheels |
Compare
How the X-Maxx Ultimate compares
Similar models we carry, side by side.
| Spec | ||||
|---|---|---|---|---|
| Type | Monster Truck | Monster Truck | Monster Truck | Monster Truck |
| Scale | X-Truck | X-Truck | X-Truck | 1/10 |
| Size (L × W × H) | 30.7 × 21.3 × 14.0 in | 30.7 × 21.3 × 14.0 in | 31.4 × 23.4 × 10.2 in | 22.5 × 16.0 × 9.1 in |
| Weight | 22.2 lb | 19.1 lb | 21.55 lb | 10.2 lb |
| Skill level | 6 | 6 | 5 | 4 |
| Top speed | 50+ mphwith two 4s LiPo batteries and optional speed gear (sold separately) | 50+ mphwith two 4s LiPo batteries and optional speed gear | 60+ mphwith dual 4s LiPo batteries and optional gearing (sold separately) | 60+ mphwith 4s LiPo battery and optional gearing |
| In the box | Battery & charger sold separately | Battery & charger sold separately | Battery & charger sold separately | Battery & charger sold separately |
| Runs on | Two 4s LiPo packs | Two 4s LiPo packs | Two 4s LiPo packs | A 3s–4s LiPo |
| Ready to run | $2,104.85completer 2997 + AA | $1,704.85completer 2997 + AA | $2,104.85completer 2997 + AA | $1,124.85completer 2996X + AA |
| Links | You’re here | View | View | View |
Specs as Traxxas prints them. Ready to run = the vehicle + the completer pack (battery and charger in one box) listed for that model + AA batteries for the transmitter, at our prices today; other battery options are on each model’s page. Nitro models also need fuel, bought locally. New to RC? How to read this table
Parts & upgrades
Keep your X-Maxx Ultimate running.
Genuine Traxxas replacement parts and upgrades, organized by part number.
Traxxas · Model 77097-4
Manuals, parts list & exploded views
X-Maxx Ultimate · Open the original manufacturer documents, hosted by RC Hobby Shop.
Parts list
User manual
Complete original documents, including safety instructions. Files open in a new tab.
