Traxxas 78086-4 XRT
Green
$1,099.95 USD
Skip to product information
Available to order
TraxxasModel 78086-4
XRT
X truck · Battery & charger sold separately
- Scale
- X-truck
- Drive
- 4WD
- Power
- Brushless
- Top speed
- 60+ mph
Battery and charger sold separately — see Complete your setup.
$1,099.95 USD
- Ships in 1–2 business daysIn-stock orders leave Houston, TX by UPS or USPS. Free standard shipping on $99+.
- Free store pickupSouthwest Fwy, Houston. We email when it's ready. Usually ready within 24 hours on days we're open.
- Genuine parts, 30-day returnsEverything comes through authorized dealer accounts. Unopened items can come back within 30 days.
Shipping & pickup
Free standard shipping covers the contiguous 48 states, big trucks included; orders under $99 pay $5.95–$8.95. Tracking is emailed when your order leaves. Batteries ship ground only and can't go to P.O. boxes, APO/FPO, Alaska or Hawaii. Full shipping policy
Picking up in Houston? Choose Pick up at checkout and wait for our ready-for-pickup email.
Returns
30 days from delivery on new, unopened items. Opened-but-unused items may carry a 15% restocking fee; batteries, chargers, powered electronics and painted bodies are final sale once opened. Full refund policy
Warranty & support
Everything we sell is genuine and covered by the manufacturer's warranty (Traxxas, Horizon Hobby and the other brands we carry). If something arrives defective, contact us within 7 days and we'll make it right. Fitment or upgrade questions? Call 832-288-4789 or email support@rchobbyshop.com.
Part # 78086-4-GRN · Traxxas model 78086-4
Complete your setup
Everything the XRT needs to run
The XRT runs on two 4s LiPo packs. Battery and charger are sold separately. Choose how you want to cover them; nothing goes in your cart until you press Add.
Optional extras are never added for you: Upgrades for the XRT
Overview

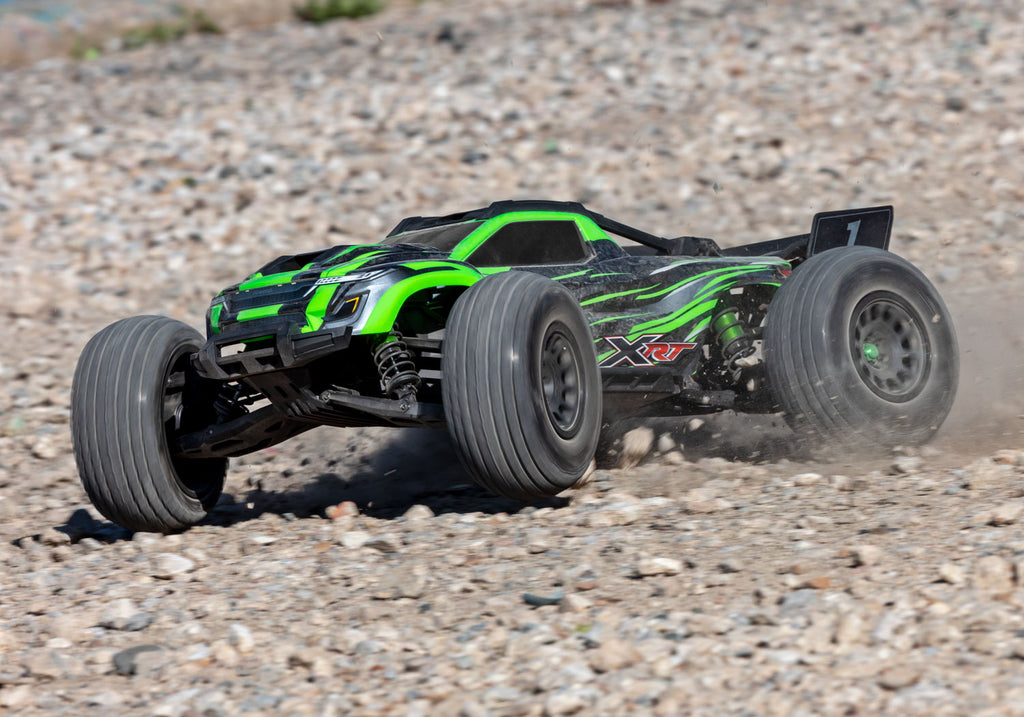

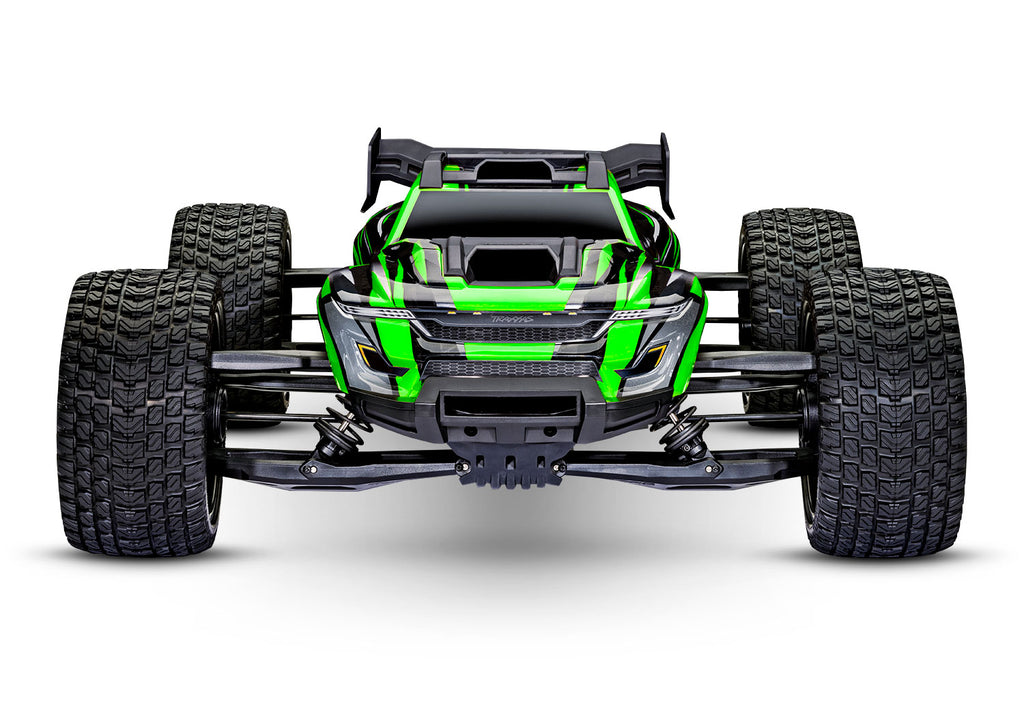

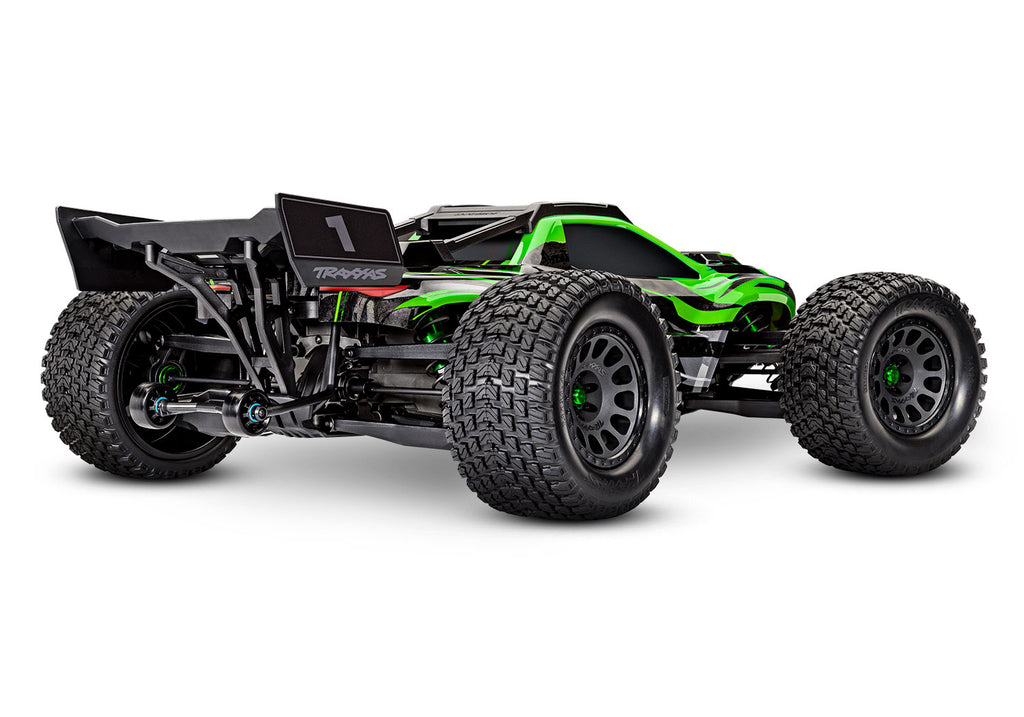

XRT: Brushless Electric Race Truck with TQi™ Traxxas Link™ Enabled 2.4GHz Radio System, Velineon® VXL-8s brushless ESC (fwd/rev), and Traxxas Stability Management (TSM)®
The Traxxas XRT® fuses race-inspired design and engineering with X-Maxx® power and strength. The result is an extreme platform with sharp reflexes and unprecedented stability that is capable of exploiting the upper range of extreme 8s power and speed.
XRT is engineered with a focus on speed, handling, and performance. XRT's low center of gravity, ultra-wide stance and low-profile body deliver confidence and control as XRT accelerates across the wide-open spaces to an all-out speed of 60+ mph.
XRT performance and durability begins with its all-metal 8s driveline. Steel 4-gear differentials and steel driveshafts are joined by a high-strength extruded aluminum center shaft. It's a precision-engineered recipe that has been proven monster-truck tough in the X-Maxx.
XRT's performance-focused chassis design is configured to lower the center of gravity for superior handling and stability. The dual 6700 4s batteries and the steering servo are positioned to place the weight as low as possible in the chassis and provide protection for these critical components.
Read more Show less
Features
- Up to 60+ mph with Two 4s LiPo Batteries (sold separately)VXL-8s™ Waterproof Electronic Speed Control with new aggressive tune for more power at any RPM, 8s LiPo compatible, integrated cooling fan, real-time telemetry via Traxxas Link™, 3-LED status indicators, machined heat sink, powered accessory ports, 10-gauge silicone wire, integrated protection circuits
- Velineon®1200XL Brushless Motor4-pole 1275 Kv, 5 mm output shaft, oversize aluminum heatsink for improved cooling, dual cooling fans
- Traxxas Stability Management®Improves straight line acceleration and braking on low-traction surfaces, never dulls throttle or slows the truck, adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4 GHz High Output Radio SystemTQi 2-channel transmitter, Traxxas Link enabled, 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports, programmable multi-function knob, adjustable steering and throttle percentage (dual rates), adjustable steering and throttle sensitivity (exponential)
- X-Truck® DrivelineFull-time shaft-driven 4-wheel drive, heavy-duty steel CV driveshafts & axles, splined aluminum center driveshaft, machined aluminum stub axles
- TransmissionMod-1 pinion and spur gears, fixed gear mesh system, torque-biasing center drive
- X-Truck DifferentialsHeavy-duty sealed 4-gear design, large scale steel ring and pinion gears, splined outdrives attached with external thru-bolt method, new bulkhead and covers increase bearing support
- Rock-Solid Motor Mounting SystemPrecise preset gear mesh adjustments, 4 keyed pins lock the motor in place, motor retention separate from gear mesh
- GTX™ ShocksMachined aluminum threaded body, extra-large bore and capacity, 5.2 mm damper shaft, lower seal cartridge includes integrated wiper seal combination, height-adjustable spring retainer, heavy-duty composite shock caps with pivot balls, lower spring perches bolted on
- WideMaxx® SuspensionPerformance-optimized geometry, extra-wide suspension arms made from strongest cold-weather material, double-shear connections, high-strength steel suspension pins with retainers, 4 mm machined pivot balls, fixed high-strength camber and toe links, heavy-duty steering blocks and axle carriers, oversized wheel bearings
- SteeringPowerful 365 oz-in steering servo, heavy-duty cam-style servo saver, dirt evacuation channels, fully waterproof
- Ultra-Low-CG Chassis DesignModular chassis with interlocking bulkheads for low center of gravity and improved handling, flat bottom design, heavy-duty interlocking skid plates, high-strength buttressing on shock towers; dual snap-lock battery compartments for protection from side impacts and secondary battery-clip security; interlocking components for tight tolerances; wire management for clean appearance
Show all 17 features Show fewer features
- Patent-Pending Clipless BodySnaps in place in just seconds, secure body latches are easy to use, clipless body mounting system, rigid internal frame, dual high-capacity cooling ducts, molded body reinforcements for tear-through protection, protective top skids, rugged high-downforce rear wing
- Heavy-duty BumpersReinforced front bumper and rear wing support absorb impact forces while retaining shape, reinforced rear wing support, nerf bars for side impact resistance, heavy-duty wheelie bar with carry handle
- Wheels and Tires7.4″ Gravix® race tires with low sidewall for sharp turn-in response, thick center carcass resists ballooning at high speed, lower rotational mass for faster acceleration; 3.8" matte black XRT wheels; high-strength glue and bead design; huge 24 mm splined wheel hubs
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
What's in the box
- XRT, Ready-To-Race model with Traxxas Big Block™ brushless motor
- VXL-8s waterproof electronic speed control with integrated telemetry
- TQi™ 2.4 GHz radio system
- High quality maintenance tools
- Optional speed gears
What you'll need
- LiPo Batteries Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries (2890X) or the Dual 4S Completer Pack (2997)
- Charger Traxxas EZ-Peak® Live Dual 4S-capable charger (2973) is recommended for easy and fast charging performance
- AA Alkaline Batteries Four AA alkaline batteries for the transmitter
Specifications
| Type | Monster Truck |
|---|---|
| Speed | 60+ mph with dual 4s LiPo batteries and optional gearing |
| Skill Level | 5 |
| Scale | X-Truck® |
| Weight | 21.03 pounds (9.54 kg) |
| Length | 31.41 inches (798 mm) |
| Width | 23.43 inches (595 mm) |
| Front Track | 23.43 inches (595 mm) |
| Rear Track | 23.43 inches (595 mm) |
| Height | 10.15 inches (258 mm) |
| Center Ground Clearance | 1.93 inches (49 mm) |
| Driveline | Shaft-driven 4WD |
| Transmission | Single speed |
| Differential Type | Sealed, hardened steel bevel, limited slip |
| Gear Pitch | 1.0 metric pitch |
| Steering Servo | 2085 digital high-torque waterproof |
| Radio System | TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver |
|---|---|
| Battery Compartment Specs | 185 mm X 51 mm X 44 mm |
| Motor Name | Velineon® 1200XL |
| Motor Type | 1275 Kv sensorless brushless |
| Motor Weight | 23.44 ounces (665 g) |
| Motor Length | 4.32 inches (110 mm) |
| Motor Diameter | 1.88 inches (48 mm) |
| Motor Shaft Size | 5 mm |
| Motor Connector Type | 6.5 mm bullet connectors |
| ESC Name | Velineon® VXL-8s |
| ESC Type | Brushless |
| ESC Case Size | 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm) |
| ESC Weight | 7.60 ounces (215.5 g) |
| ESC Motor Connectors | 6.5 mm bullet connectors |
| ESC Battery Connectors | Traxxas High-Current Connectors |
| ESC Power Wire | 10 gauge Maxx® Cable |
