Traxxas 97044-1 TRX-4M Ford F-150 High Trail Edition
Black
$199.95 USD
Skip to product information
Available to order
TraxxasModel 97044-1
TRX-4M Ford F-150 High Trail Edition
Mini trail crawler · Battery & charger included
- Scale
- 1/18
- Drive
- 4WD
- Power
- Brushed
- Battery
- Included
$199.95 USD
- Ships in 1–2 business daysIn-stock orders leave Houston, TX by UPS or USPS. Free standard shipping on $99+.
- Free store pickupSouthwest Fwy, Houston. We email when it's ready. Usually ready within 24 hours on days we're open.
- Genuine parts, 30-day returnsEverything comes through authorized dealer accounts. Unopened items can come back within 30 days.
Shipping & pickup
Free standard shipping covers the contiguous 48 states, big trucks included; orders under $99 pay $5.95–$8.95. Tracking is emailed when your order leaves. Batteries ship ground only and can't go to P.O. boxes, APO/FPO, Alaska or Hawaii. Full shipping policy
Picking up in Houston? Choose Pick up at checkout and wait for our ready-for-pickup email.
Returns
30 days from delivery on new, unopened items. Opened-but-unused items may carry a 15% restocking fee; batteries, chargers, powered electronics and painted bodies are final sale once opened. Full refund policy
Warranty & support
Everything we sell is genuine and covered by the manufacturer's warranty (Traxxas, Horizon Hobby and the other brands we carry). If something arrives defective, contact us within 7 days and we'll make it right. Fitment or upgrade questions? Call 832-288-4789 or email support@rchobbyshop.com.
Part # 97044-1-BLK · Traxxas model 97044-1
Overview

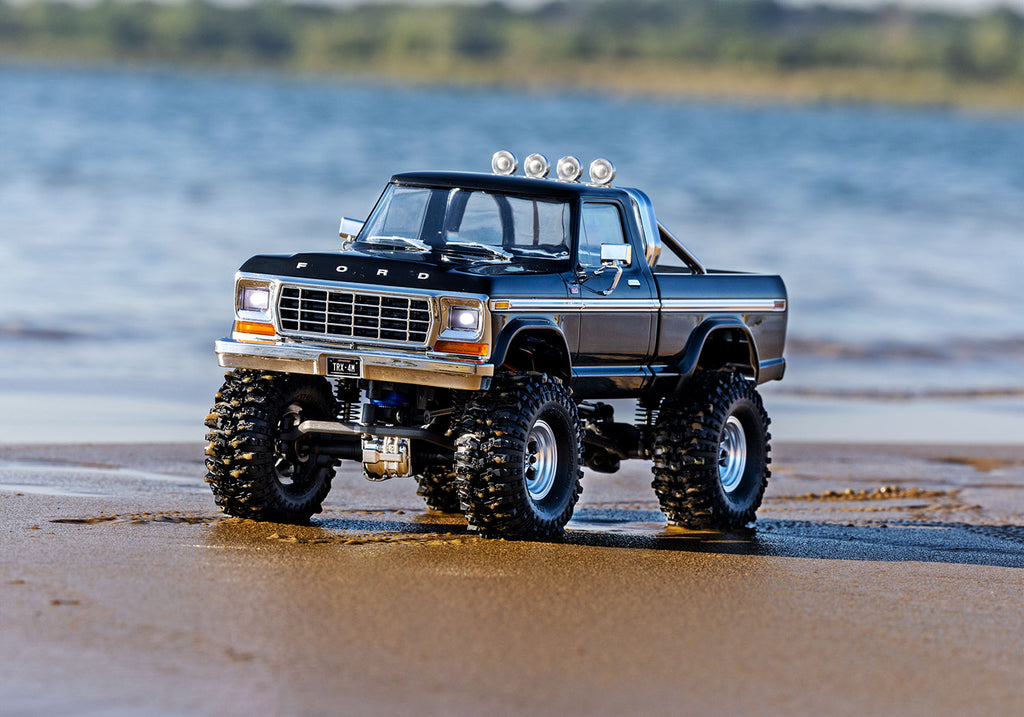

TRX-4M Scale and Trail® Crawler with 1979 Ford® F-150® Truck Body: 1/18-Scale 4WD Electric Truck with TQ 2.4GHz Radio System
Small-scale adventure takes a big leap in performance with TRX-4M High Trail™ Edition trucks. Available with either a Chevrolet® K10 or Ford® F-150® body, High Trail trucks offer over 35% more center ground clearance than a standard TRX-4M. Both trucks ride on larger Mickey Thompson® Baja Pro™ XS tires with an extended wheelbase for even more all-terrain capability. From indoor fun to outdoor adventure, TRX-4M High Trail Edition pickups deliver the quality and performance you expect from Traxxas.
TRX-4M High Trail Edition performs like a full-size crawler because it's built like one. A new extended rigid steel ladder frame runs from bumper to bumper to virtually eliminate flex. You'll feel the added stability of its longer wheelbase on steep climbs or while navigating technical terrain.
High Trail Edition trucks ride on a sophisticated four-link suspension with extended heavy duty linkages. Spool-equipped solid axles supply non-stop climbing power with excellent articulation and extended center ground clearance to climb over the toughest obstacles. Heavy duty telescoping center driveshafts send the motor's torque to the axles with a smooth-running CV design.
TRX-4M outmaneuvers much smaller trucks thanks to its exceptional 45° steering angle—an impressive feat considering its larger and more versatile size.
Constructed out of tough ABS, TRX-4M High Trail Editions faithfully captures all the details of these classic Ford and Chevrolet pickups in exacting 1/18 scale. Tinted windows, chrome trim, a pickup bed, and other molded body accessories give them a truly authentic appearance.
Standard LED headlights enhance the High Trail's scale appearance and create new avenues for fun as you challenge your driving skills through sofa-cushion tunnels or over garden obstacles when the sun goes down.
Large 2.4? Mickey Thompson Baja Pro XS tires give High Trail Editions that lifted truck look. The oversize tires improve the center ground clearance and put more rubber to the ground for exceptional off-road performance. Detailed 8-hole chrome mag wheels round out the package for a stunning scale appearance.
You'll never need to change course to avoid puddles, mud, or snow with lifted High Trail Edition trucks. We built TRX-4M for all-weather adventure with fully-waterproof electronics.
Read more Show less
Features
- Officially Licensed Ford® F-150® Clipless BodyHighly-detailed ABS hard body with molded-in color, tough fender flares, rock sliders, realistic side mirrors, door handles, roll bar, wipers, and LED headlights
- ECM-2.5™ Electronic Control ModuleIncorporates ESC, receiver, and LED controller in one chassis with full waterproofing, three drive profiles (Sport, Trail, Crawl), EZ-Set one-button setup, built-in Pro Scale LED functionality, and two-stage low voltage protection
- TQ™ 2.4 GHz TransmitterFull-size 2-channel transmitter with all-day comfort and precise long-range control
- Titan® 180 87-Turn Brushed MotorFixed gear mesh with forward mounting position for improved crawling dynamics
- Extended Heavy-Duty Steel Ladder FrameDeep C-channel design with thicker center section and rails running bumper to bumper
- DrivelineFull-time shaft-driven 4-wheel drive with solid steel axles, spool-equipped front and rear axles, and heavy-duty CV center driveshafts
- Low-CG Battery TrayConcentrates weight lower for improved stability with wide rubber strap securing battery
- SteeringHeavy-duty 2065T servo with metal main gear and superior 45° steering angle
- Lifted High Trail™ SuspensionRevised shock towers with triangulated 4-link front and rear and heavy-duty rod ends
- Oil-Filled GTM™ ShocksSmooth controlled damping with realistic body movements and adjustable pre-load spacers
- Wheels and Tires1″ Replica slotted chrome mag wheels with 7mm hex and pre-mounted Mickey Thompson® Baja Pro™ XS tires
- Battery and Charger IncludedHigh-capacity 2-cell LiPo battery with iD® (7.4V, 750mAh) and 2-amp USB-powered charger
- Low-Maintenance Self-Lubricating BushingsDurable hex hardware
What's in the box
- TRX-4M High Trail model
- Licensed ABS hard body
- Titan® 180 87-turn motor
- ECM-2.5 Electronic Control Module
- TQ transmitter
- 7.4 volt 750 mAh 2-cell LiPo battery
- 2-amp USB fast charger with iD®
- High quality maintenance tools
What you'll need
- AA Alkaline Batteries Four AA alkaline batteries for the transmitter
- USB-A Power Source 2-amp, 5+ volts recommended minimum
Specifications
| Type | Trail / Crawler |
|---|---|
| Skill Level | 1 |
| Scale | 1/18 |
| Weight | 1.03 lbs (468 g) |
| Length | 10.6 inches (269 mm) |
| Width | 5.0 inches (127 mm) |
| Front Track | 5.0 inches (127 mm) |
| Rear Track | 5.0 inches (127 mm) |
| Height | 5.0 inches (127 mm) |
| Wheelbase | 6.38 inches (162 mm) |
| Center Ground Clearance | 1.57 inches (40 mm) |
| Battery Type | Lithium polymer (LiPo) |
| Driveline | Shaft-driven 4WD |
| Transmission | Single speed direct drive |
| Differential Type | Locked spool |
| Gear Ratio Internal | 11.38 |
| Gear Pitch | 64 pitch |
| Steering Servo | 2065T |
| Radio System | TQ 2.4 GHz 2-channel transmitter |
|---|---|
| Motor Name | Titan 180 |
| Motor Type | 87-turn brushed motor |
| Motor Weight | 1.16 ounces (33 g) |
| Motor Length | 1.66 inches (42 mm) |
| Motor Diameter | .81 inches (21 mm) |
| ESC Name | ECM 2.5™ |
| ESC Type | Brushed |
| ESC Case Size | 1.79 inches (45 mm) x 1.26 inches (32 mm) x 0.6 inches (15 mm) |
| ESC Weight | .92 ounces (26 g) |
| Battery | 2-cell LiPo, 7.4V, 750 mAh with iD® |
| Charger | 2-amp USB-powered charger with iD® |
| Tires | Mickey Thompson® Baja Pro™ XS |
| Wheels | 1″ Replica slotted chrome mag wheels with 7mm hex |
| Top Speed | Trail Speed |
| Power | Brushed Motor |
| Battery Charger | Included |
Compare
How the TRX-4M Ford F-150 High Trail Edition compares
Similar models we carry, side by side.
| Spec | ||||
|---|---|---|---|---|
| Type | Trail / Crawler | Trail / Crawler | Trail / Crawler | Trail / Crawler |
| Scale | 1/18 | 1/18 | 1/18 | 1/10 |
| Size (L × W × H) | 10.6 × 5.0 × 5.0 in | 10.6 × 5.0 × 5.0 in | 10.3 × 4.9 × 4.6 in | 22.3 × 10.6 × 10.8 in |
| Weight | 1.03 lb | 1.03 lb | 1.03 lb | 7.34 lb |
| Skill level | 1 | 1 | 1 | 1 |
| Top speed | Trail Speed | — | Trail Speed | Trail Speed |
| In the box | Battery & charger included | Battery & charger included | Battery & charger included | Battery & charger sold separately |
| Runs on | Included battery | Included battery | Included battery | A 2s–3s LiPo or a 6–7-cell NiMH |
| Ready to run | $204.90+ AA | $204.90+ AA | $184.90+ AA | $694.85completer 2970-3S + AA |
| Links | You’re here | View | View | View |
Specs as Traxxas prints them. Ready to run = the vehicle + the completer pack (battery and charger in one box) listed for that model + AA batteries for the transmitter, at our prices today; other battery options are on each model’s page. Nitro models also need fuel, bought locally. New to RC? How to read this table
Parts & upgrades
Keep your TRX-4M Ford F-150 High Trail Edition running.
Genuine Traxxas replacement parts and upgrades, organized by part number.
Upgrades for your TRX-4M Ford F-150 High Trail Edition
-
TRX-4M Brushless Power System$119.95 USD -
Metal-Gear Sub-Micro Servo$39.95 USD -
TRX-4M Blue Aluminum Suspension Link Set$69.95 USD -

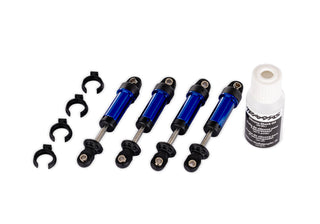

Blue Aluminum GTM Shocks (4)$49.95 USD
