Traxxas 92046-4 TRX-4 Ford F-150 High Trail Edition
Brown
$549.95 USD
Skip to product information
Available to order
TraxxasModel 92046-4
TRX-4 Ford F-150 High Trail Edition
High trail crawler · Battery & charger sold separately
- Scale
- 1/10
- Drive
- 4WD
- Power
- Brushed
- Battery
- Sold separately
Battery and charger sold separately — see Complete your setup.
$549.95 USD
- Ships in 1–2 business daysIn-stock orders leave Houston, TX by UPS or USPS. Free standard shipping on $99+.
- Free store pickupSouthwest Fwy, Houston. We email when it's ready. Usually ready within 24 hours on days we're open.
- Genuine parts, 30-day returnsEverything comes through authorized dealer accounts. Unopened items can come back within 30 days.
Shipping & pickup
Free standard shipping covers the contiguous 48 states, big trucks included; orders under $99 pay $5.95–$8.95. Tracking is emailed when your order leaves. Batteries ship ground only and can't go to P.O. boxes, APO/FPO, Alaska or Hawaii. Full shipping policy
Picking up in Houston? Choose Pick up at checkout and wait for our ready-for-pickup email.
Returns
30 days from delivery on new, unopened items. Opened-but-unused items may carry a 15% restocking fee; batteries, chargers, powered electronics and painted bodies are final sale once opened. Full refund policy
Warranty & support
Everything we sell is genuine and covered by the manufacturer's warranty (Traxxas, Horizon Hobby and the other brands we carry). If something arrives defective, contact us within 7 days and we'll make it right. Fitment or upgrade questions? Call 832-288-4789 or email support@rchobbyshop.com.
Part # 92046-4-BRWN · Traxxas model 92046-4
Complete your setup
Everything the TRX-4 Ford F-150 High Trail Edition needs to run
The TRX-4 Ford F-150 High Trail Edition runs on a 2s–3s LiPo or a 6–7-cell NiMH. Battery and charger are sold separately. Choose how you want to cover them; nothing goes in your cart until you press Add.
Optional extras are never added for you: Upgrades for the TRX-4 Ford F-150 High Trail Edition
Overview
TRX-4® Scale and Trail® crawler with 1979 Ford® F-150® truck body and Long Arm Lift Kit: 1/10 Scale 4WD electric truck. Ready-To-Explore®, with TQi™ Traxxas Link™ enabled 2.4 GHz radio system, XL-5™ HV ESC (fwd/rev), and Titan® 550 motor.
The Traxxas lineup of exciting and capable High Trail TRX-4® models is expanding with the all-new 1979 Ford® F-150® truck. Sporting top-of-the-line Ranger XLT trim, the Ford F-150 High Trail is equipped with a factory-installed Long Arm Lift Kit and stands over an inch taller than our standard height TRX-4. The exceptional all-terrain capability, smooth running drivetrain, and Traxxas Tough® durability drivers expect from TRX-4 are all there. Black roll bar, chrome light housings, longer wheelbase, and slotted aluminum-finish mags complete the authentic, period correct look.
Read more Show less
Features
- Officially Licensed 1979 Ford® F-150® Ranger XLT BodyScale details: grille, chrome bumpers, side mirrors, door handles, and wipers. LED-ready headlights, tail lights, and roll bar. Authentic decal sheet. Full Nylon composite wheel wells and floor pans.
- Clipless Body mountingClipless design for smooth body appearance. Rugged internal body cage for added rigidity. Body details mount directly to internal frame.
- Trail-tuned XL-5™ HV Waterproof Electronic Speed ControlFully waterproof design. Five drive profiles: Sport Mode, Race Mode, Training Mode, Trail Mode, Crawl Mode. Traxxas EZ-Set® one-button setup. Large, efficient heat sink. Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V). Two stage low voltage protection (LVD).
- Titan® 550 MotorPowerful Titan 21T reverse rotation motor with internal cooling fan. Precision, preset gear mesh adjustments. Motor retention separate from gear mesh.
- Portal AxlesIncrease ground clearance. Eliminate torque twist. Steel gears. Improve axle geometry and reduce strain on driveshafts.
- DrivelineFull-time shaft driven 4-wheel drive. Tough 6 mm stub axles. Steel front CV driveshafts. Hardened steel rear axle shafts. Remote locking steel gear differentials with cable-actuation. Steel gear transfer case.
- Factory-Installed Long Arm Lift KitIncreases ground clearance over 1″. Maintains precise steering geometry. Accommodates oversize 2.2″ wheels and tires.
- TQi™ 2.4 GHz Radio System4-channel transmitter. 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports. Compatible with optional TQi Traxxas Link Wireless Module (6511). Automatically stores and loads settings for up to 30 Traxxas Link enabled models. Exclusive Cruise Control feature. Adjustable steering and throttle sensitivity (exponential). Adjustable steering and throttle endpoints. Patented waterproof receiver box with easy-access plug.

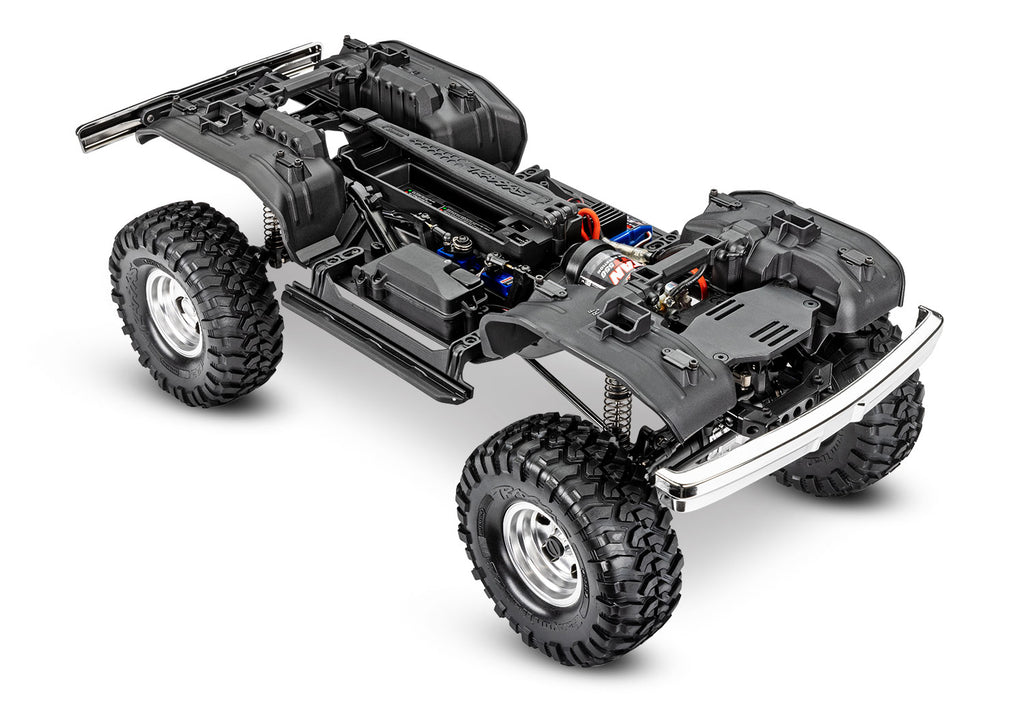

- Extended WheelbaseLong 336 mm wheelbase for improved stability. Full-length 1.5 mm thick steel frame rails. Bumpers adjust fore and aft. Rugged rock rails adjust for width. Wire routing clips integrated into frame rails.
- Innovative Battery CompartmentHinged battery strap allows quick and easy battery access. No pins to lose. Accommodates different height batteries. Accepts full-size long battery packs. Integrated compartment accepts smaller 1/16 scale batteries (with optional strap). Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap).
- TransmissionTwo speed high/low range with remote shifting. Dual horizontal shafts. Twin friction plate slipper clutch. Easily removed for servicing.
- SteeringChassis mounted 2075X metal gear digital servo. Superior 45° steering angle. Direct steering (no servo saver). Steering geometry corrected for bump steer.
Show all 18 features Show fewer features
- SuspensionFront: 3 link with panhard. Rear: Triangulated 4 link. Heavy-duty rod ends with steel hollow balls. 5 mm diameter steel link rods with 4 mm threaded ends.
- Extended Aluminum GTS ShocksOil-filled coilover GTS shocks exclusive to TRX-4 chassis. Extra-long aluminum bodies for greater articulation. Silver-anodized aluminum bodies. Threaded bodies with collars easily adjust ride height. Silky smooth damping for the toughest trails. O-ring cap seal and dual X-ring shaft seals.
- Oversize Wheels and Tires2.2″ slotted mag wheels wheels with hub inserts. Pre-mounted 2.2″ Canyon Trail tires with trail-tuned foam inserts. Trail tuned S1 rubber compound. 12 mm steel hex.
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
- Requires Battery and Charger (Sold Separately)
What's in the box
- TRX-4 Scale and Trail crawler
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQi 2.4 GHz radio system with cruise control
- High quality maintenance tools
What you'll need
- Batteries - TRX-4 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries.
- Charger - The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance.
- AA Alkaline Batteries - Four AA alkaline batteries for the transmitter.
Specifications
| Type | Trail / Crawler |
|---|---|
| Skill Level | 1 |
| Chassis | Extended steel ladder frame |
| Scale | 1/10 |
| Weight | 7.34 lb (3.33 kg) |
| Length | 22.30 inches (566 mm) |
| Width | 10.60 inches (270 mm) |
| Front Track | 10.60 inches (270 mm) |
| Rear Track | 10.60 inches (270 mm) |
| Height | 10.82 inches (275 mm) |
| Wheelbase | 13.23 inches (336 mm) |
| Center Ground Clearance | 4 inches (99 mm) |
| Driveline | Shaft-driven 4WD |
| Transmission | 2-speed high/low, remote shifting |
| Differential Type | 4 gear, remote locking |
| Gear Pitch | 32 pitch |
| Steering Servo | 2075X metal gear, digital high-torque waterproof |
| Radio System | TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver |
| Battery Compartment Specs | 159 mm X 47 mm X 23 mm, 26 mm |
|---|---|
| Motor Name | Titan® 550 21T reverse rotation |
| Motor Type | High-torque brushed motor |
| Motor Weight | 390 g (13.76 oz) |
| Motor Length | 3.071″ (78 mm) overall length, 2.25″ (57 mm) can length |
| Motor Diameter | 1.532″ (39 mm diameter) |
| Motor Shaft Size | 3 mm |
| Motor Connector Type | Bullet |
| ESC Name | XL-5™ HV |
| ESC Type | Brushed |
| ESC Case Size | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
| ESC Weight | 2.6 ounces (74 g) |
| ESC Motor Connectors | Bullet |
| ESC Battery Connectors | Traxxas High-Current Connector |
| ESC Power Wire | 14 gauge |
| Top Speed | Trail Speed |
| Wheels | 2.2″ slotted mag wheels wheels with hub inserts |
| Tires | Pre-mounted 2.2″ Canyon Trail tires with trail-tuned foam inserts |
Compare
How the TRX-4 Ford F-150 High Trail Edition compares
Similar models we carry, side by side.
| Spec | ||||
|---|---|---|---|---|
| Type | Trail / Crawler | Trail / Crawler | Trail Truck / Crawler | Trail / Crawler |
| Scale | 1/10 | 1/10 | 1/10 | 1/18 |
| Size (L × W × H) | 22.3 × 10.6 × 10.8 in | 22.2 × 10.6 × 10.9 in | 22.3 × 9.8 × 9.5 in | 10.6 × 5.0 × 5.0 in |
| Weight | 7.34 lb | 7.38 lb | 5.79 lb | 1.03 lb |
| Skill level | 1 | 1 | 1 | 1 |
| Top speed | Trail Speed | Trail Speed | Trail Speed | Trail Speed |
| In the box | Battery & charger sold separately | Battery & charger sold separately | Battery & charger sold separately | Battery & charger included |
| Runs on | A 2s–3s LiPo or a 6–7-cell NiMH | A 2s–3s LiPo or a 6–7-cell NiMH | A 2s–3s LiPo or a 6–7-cell NiMH | Included battery |
| Ready to run | $694.85completer 2970-3S + AA | $694.85completer 2970-3S + AA | $594.85completer 2970-3S + AA | $204.90+ AA |
| Links | You’re here | View | View | View |
Specs as Traxxas prints them. Ready to run = the vehicle + the completer pack (battery and charger in one box) listed for that model + AA batteries for the transmitter, at our prices today; other battery options are on each model’s page. Nitro models also need fuel, bought locally. New to RC? How to read this table
Parts & upgrades
Keep your TRX-4 Ford F-150 High Trail Edition running.
Genuine Traxxas replacement parts and upgrades, organized by part number.
Upgrades for your TRX-4 Ford F-150 High Trail Edition
-
High-Torque 600 Metal Gear Servo$159.95 USD -
Digital High-Torque Coreless Servo$79.95 USD -
Blue Aluminum Caster Blocks (L&R)$49.95 USD -
Blue Aluminum Inner Front Portal Housings (2)$49.95 USD
Traxxas · Model 92046-4
Manuals, parts list & exploded views
TRX-4 Ford F-150 High Trail Edition · Open the original manufacturer documents, hosted by RC Hobby Shop.
Parts list
User manual
Complete original documents, including safety instructions. Files open in a new tab.
