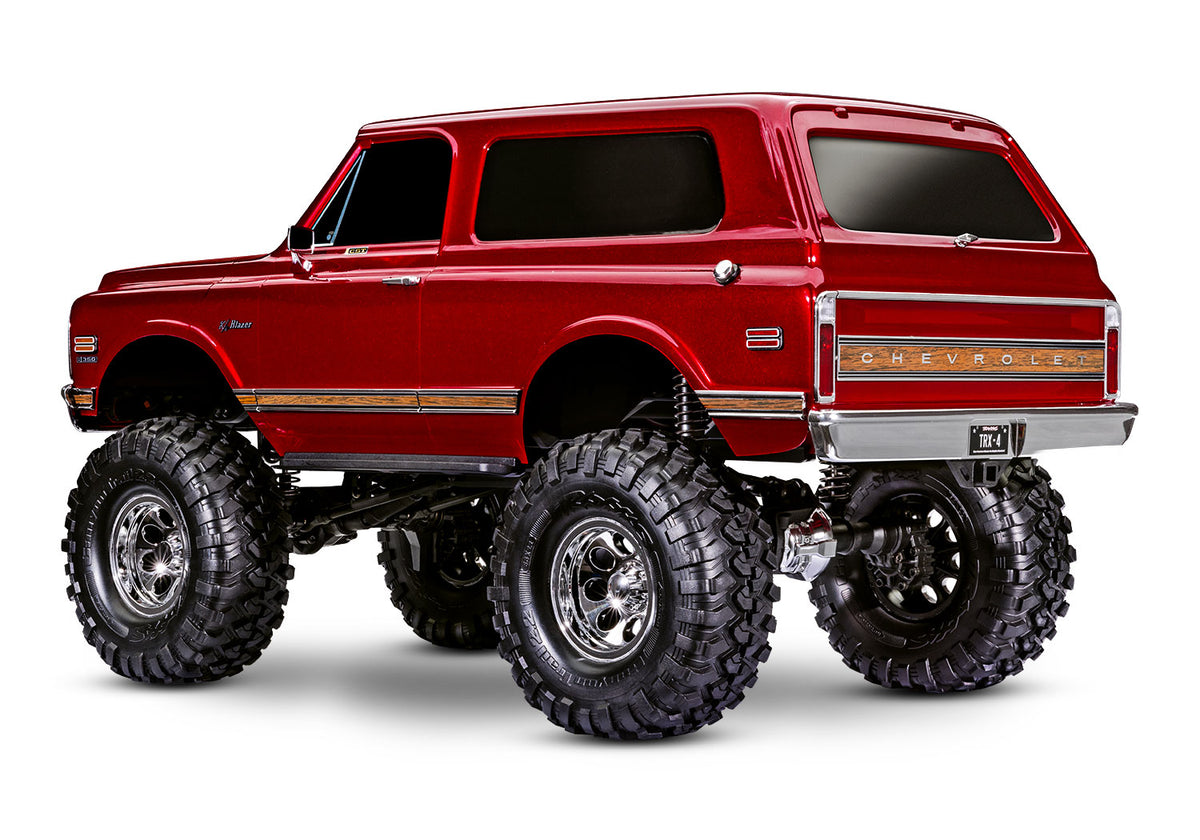

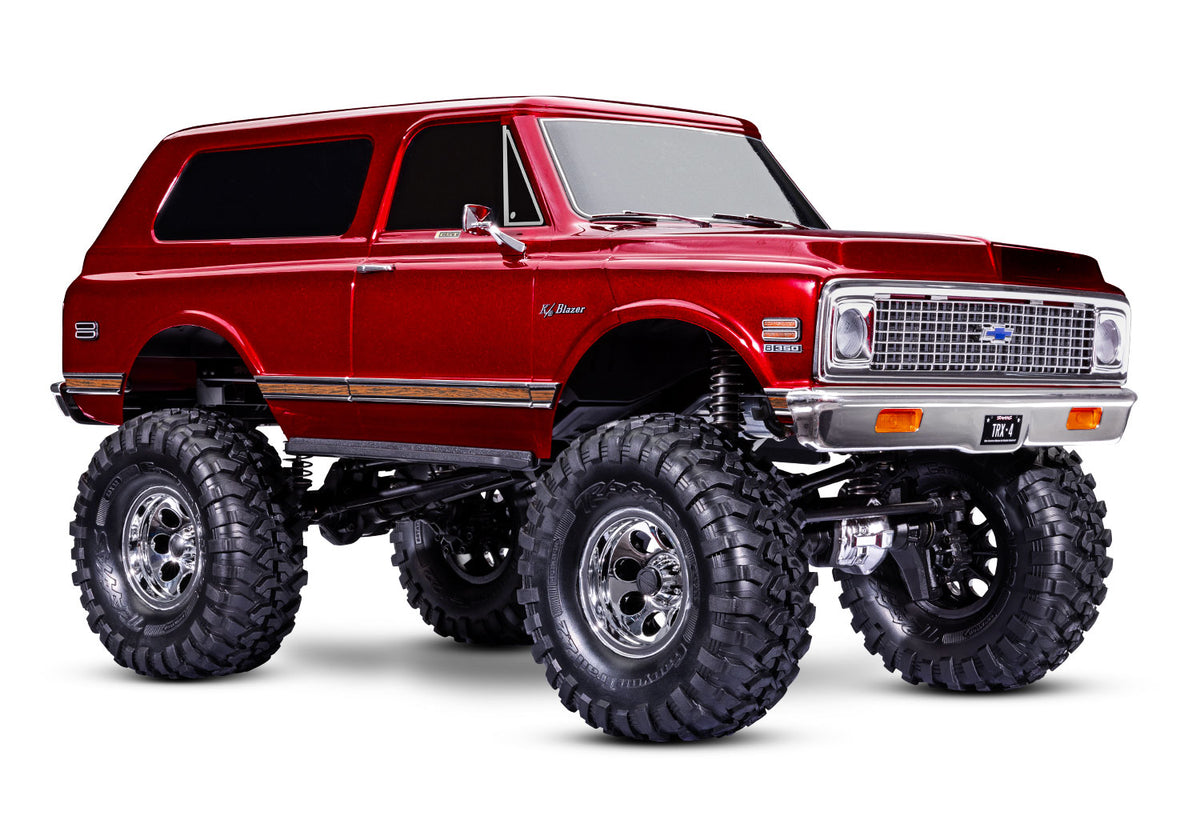

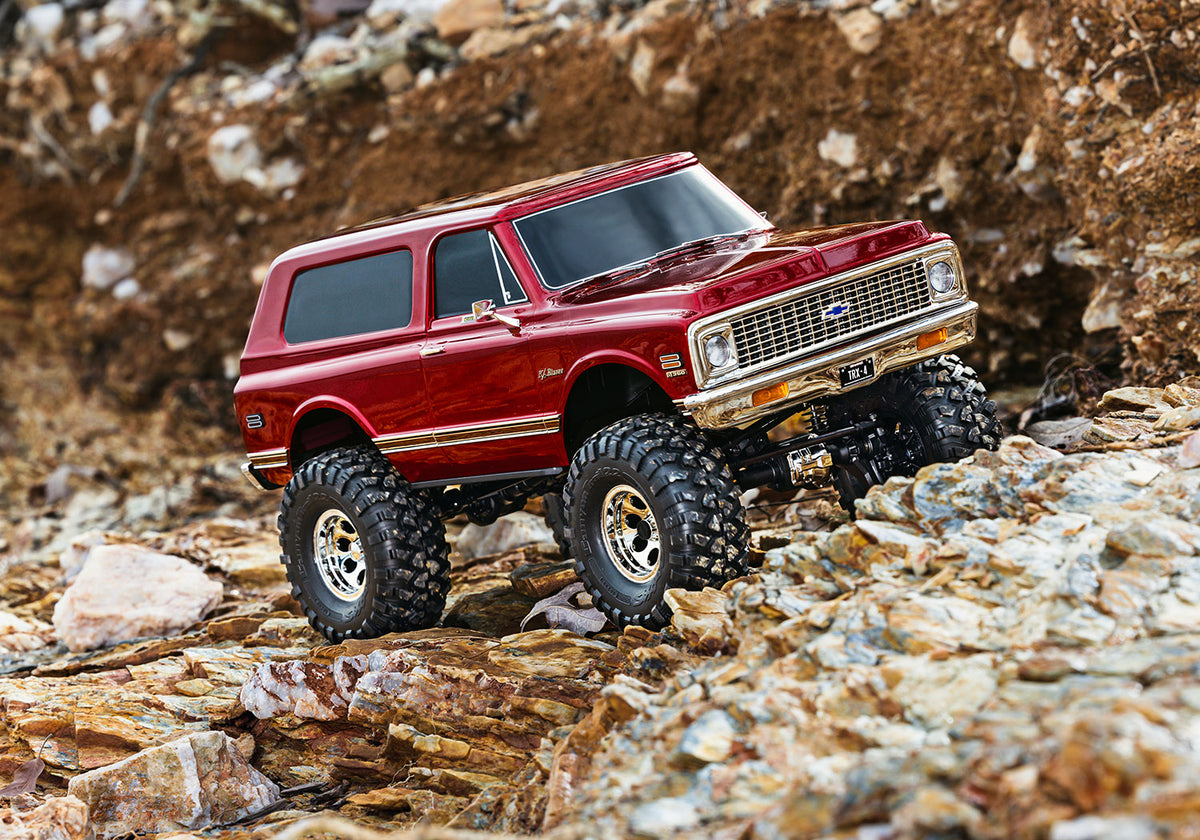

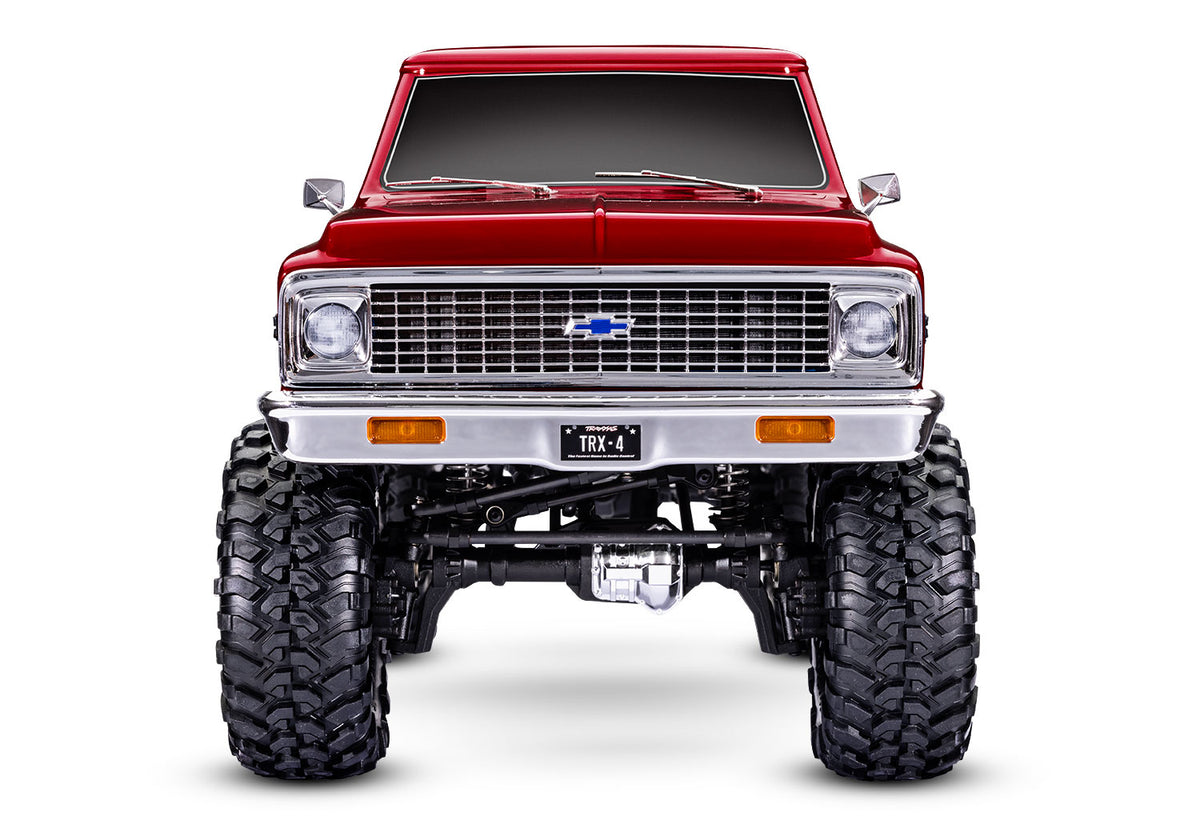

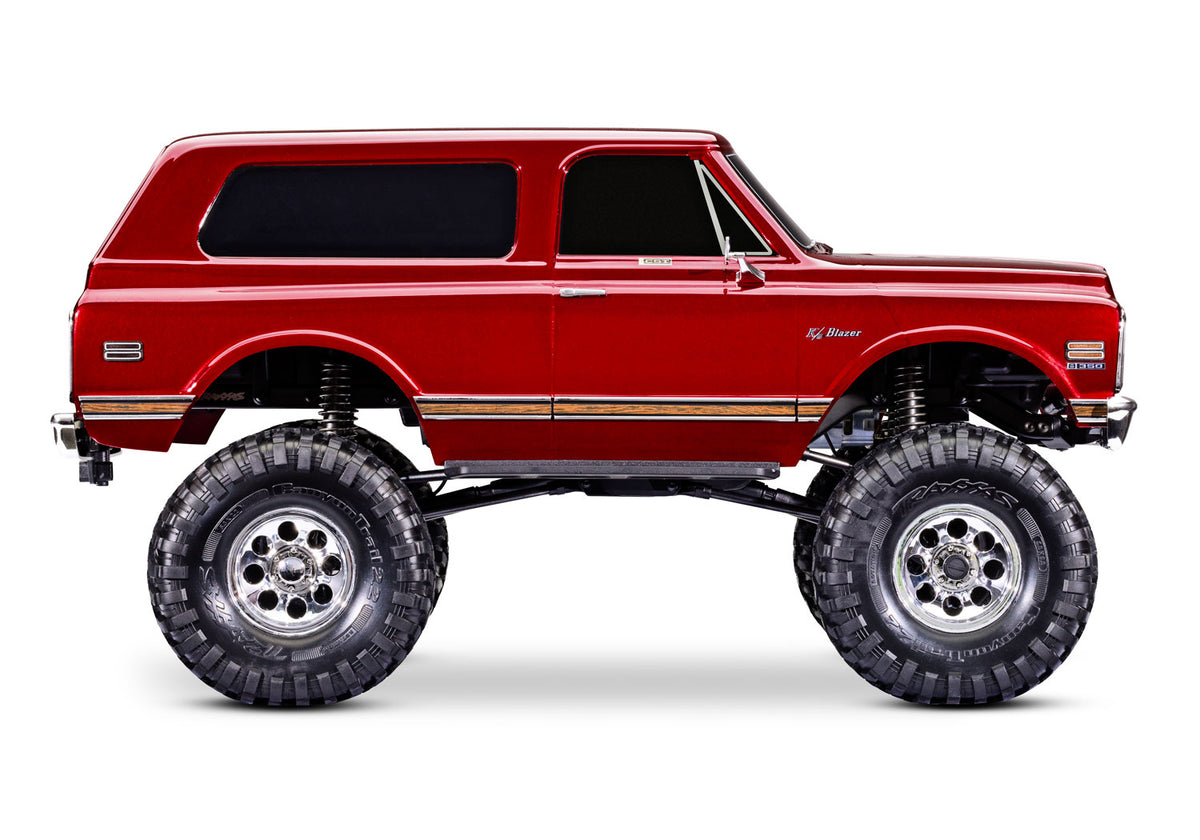

Traxxas 92086-4 TRX-4 Chevrolet Blazer High Trail Edition
Red
$549.95 USD
Skip to product information
Available to order
TraxxasModel 92086-4
TRX-4 Chevrolet Blazer High Trail Edition
High trail crawler · Battery & charger sold separately
- Scale
- 1/10
- Drive
- 4WD
- Power
- Brushed
- Battery
- Sold separately
Battery and charger sold separately — see Complete your setup.
$549.95 USD
- Ships in 1–2 business daysIn-stock orders leave Houston, TX by UPS or USPS. Free standard shipping on $99+.
- Free store pickupSouthwest Fwy, Houston. We email when it's ready. Usually ready within 24 hours on days we're open.
- Genuine parts, 30-day returnsEverything comes through authorized dealer accounts. Unopened items can come back within 30 days.
Shipping & pickup
Free standard shipping covers the contiguous 48 states, big trucks included; orders under $99 pay $5.95–$8.95. Tracking is emailed when your order leaves. Batteries ship ground only and can't go to P.O. boxes, APO/FPO, Alaska or Hawaii. Full shipping policy
Picking up in Houston? Choose Pick up at checkout and wait for our ready-for-pickup email.
Returns
30 days from delivery on new, unopened items. Opened-but-unused items may carry a 15% restocking fee; batteries, chargers, powered electronics and painted bodies are final sale once opened. Full refund policy
Warranty & support
Everything we sell is genuine and covered by the manufacturer's warranty (Traxxas, Horizon Hobby and the other brands we carry). If something arrives defective, contact us within 7 days and we'll make it right. Fitment or upgrade questions? Call 832-288-4789 or email support@rchobbyshop.com.
Part # 92086-4-RED · Traxxas model 92086-4
Complete your setup
Everything the TRX-4 Chevrolet Blazer High Trail Edition needs to run
The TRX-4 Chevrolet Blazer High Trail Edition runs on a 2s–3s LiPo or a 6–7-cell NiMH. Battery and charger are sold separately. Choose how you want to cover them; nothing goes in your cart until you press Add.
Optional extras are never added for you: Upgrades for the TRX-4 Chevrolet Blazer High Trail Edition
Overview
TRX-4® Scale and Trail® crawler with 1972 Chevrolet® K5 Blazer body and Long Arm Lift Kit: 1/10 Scale 4WD electric truck. Ready-To-Explore®, with TQi™ Traxxas Link™ enabled 2.4 GHz radio system, XL-5™ HV ESC (fwd/rev), and Titan® 550 motor.
Traxxas High Trail Edition™ TRX-4 models are the biggest and baddest trucks on the trail and now classic Blazer fans have reason to celebrate. The 1972 Chevrolet® K5 Blazer gets the full High Trail treatment with a big, lifted stance and beautifully detailed body. The factory-installed Long Arm Lift Kit boosts the Blazer's ground clearance by more than an inch with larger 2.2″ wheels and tires to conquer the roughest terrain. K5 Blazer High Trail Edition delivers more of what you crave—extreme all-terrain capability, stunning scale looks, and Traxxas-Tough™ durability.
Read more Show less
Features
- Officially Licensed Chevrolet® K5 Blazer BodyScale details: deep-inset front grille, chrome bumpers, side mirrors, door handles, side trim and wipers. LED-ready headlights, tail lights, and side markers. Authentic decal sheet. Full Nylon composite wheel wells and floor pans.
- Clipless Body mountingClipless design for smooth body appearance. Rugged internal body cage for added rigidity. Body details mount directly to internal frame.
- Trail-tuned XL-5™ HV Waterproof Electronic Speed ControlFully waterproof design. Five drive profiles: Sport Mode, Race Mode, Training Mode™, Trail Mode, Crawl Mode. Traxxas EZ-Set® one-button setup. Large, efficient heat sink. Wide voltage latitude. Two stage low voltage protection (LVD).
- Titan® 550 MotorPowerful Titan 21T reverse rotation motor with internal cooling fan. Precision, preset gear mesh adjustments. Motor retention separate from gear mesh.
- Portal AxlesIncrease ground clearance. Eliminate torque twist. Steel gears. Improve axle geometry and reduce strain on driveshafts.
- DrivelineFull-time shaft driven 4-wheel drive. Tough 6 mm stub axles. Steel front CV driveshafts. Hardened steel rear axle shafts. Remote locking steel gear differentials. Steel gear transfer case.
- Factory-Installed Long Arm Lift KitIncreases ground clearance over 1″. Maintains precise steering geometry. Accommodates oversize 2.2" wheels and tires.
- TQi™ 2.4 GHz Radio System4-channel transmitter. 5-channel micro receiver with fail-safe security and integrated telemetry ports. Compatible with optional TQi Traxxas Link Wireless Module. Automatically stores and loads settings for up to 30 models. Exclusive Cruise Control feature. Adjustable steering and throttle sensitivity. Adjustable steering and throttle endpoints. Patented waterproof receiver box.
- Reinforced Steel Ladder FrameFull-length 1.5 mm thick steel frame rails. Bumpers adjust fore and aft. Rugged rock rails adjust for width. Wire routing clips integrated into frame rails.
- Innovative Battery CompartmentHinged battery strap allows quick and easy battery access. No pins to lose. Accommodates different height batteries. Accepts full-size long battery packs. Integrated compartment accepts smaller 1/16 scale batteries. Secondary front battery tray.
- TransmissionTwo speed high/low range with remote shifting. Dual horizontal shafts. Twin friction plate slipper clutch. Easily removed for servicing.
- SteeringChassis mounted 2075X metal gear digital servo. Superior 45° steering angle. Direct steering. Steering geometry corrected for bump steer.
Show all 18 features Show fewer features
- SuspensionFront: 3 link with panhard. Rear: Triangulated 4 link. Heavy-duty rod ends with steel hollow balls. 5 mm diameter steel link rods with 4 mm threaded ends.
- Extended Aluminum GTS ShocksOil-filled coilover GTS shocks. Extra-long aluminum bodies for greater articulation. Silver-anodized aluminum bodies. Threaded bodies with collars. Silky smooth damping. O-ring cap seal and dual X-ring shaft seals.
- Oversize Wheels and Tires2.2" chrome mag wheels with hub inserts. Pre-mounted 2.2" Canyon Trail tires with trail-tuned foam inserts. Trail tuned S1 rubber compound. 12 mm steel hex.
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
- Requires Battery and Charger (Sold Separately)
What's in the box
- TRX-4 Scale and Trail crawler
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQi 2.4 GHz radio system with cruise control
- High quality maintenance tools
What you'll need
- Batteries TRX-4 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries.
- Charger The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance.
- AA Alkaline Batteries Four AA alkaline batteries for the transmitter.
Specifications
| Type | Trail / Crawler |
|---|---|
| Skill Level | 1 |
| Chassis | Steel Ladder Frame |
| Scale | 1/10 |
| Weight | 7.26 lbs (3.30 kg) |
| Length | 20.67 inches (525 mm) |
| Width | 10.63 inches (270 mm) |
| Track | 10.63 inches (270 mm) |
| Height | 11.22 inches (285 mm) |
| Wheelbase | 12.28 inches (312 mm) |
| Center Ground Clearance | 4 inches (99 mm) |
| Driveline | Shaft-driven 4WD |
| Transmission | 2-speed high/low, remote shifting |
| Differential Type | 4 gear, remote locking |
| Gear Pitch | 32 pitch |
| Steering Servo | 2075X metal gear, digital high-torque waterproof |
| Radio System | TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver |
| Battery Compartment Specs | 159 mm X 47 mm X 23 mm, 26 mm |
|---|---|
| Motor Name | Titan® 550 21T reverse rotation |
| Motor Type | High-torque brushed motor |
| Motor Weight | 390 g (13.76 oz) |
| Motor Length | 3.071" (78 mm) overall length, 2.25" (57 mm) can length |
| Motor Diameter | 1.532" (39 mm diameter) |
| Motor Shaft Size | 3 mm |
| Motor Connector Type | Bullet |
| ESC Name | XL-5™ HV |
| ESC Type | Brushed |
| ESC Case Size | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
| ESC Weight | 2.6 ounces (74 g) |
| ESC Motor Connectors | Bullet |
| ESC Battery Connectors | Traxxas High-Current Connector |
| ESC Power Wire | 14 gauge |
| Top Speed | Trail Speed |
Compare
How the TRX-4 Chevrolet Blazer High Trail Edition compares
Similar models we carry, side by side.
| Spec | ||||
|---|---|---|---|---|
| Type | Trail / Crawler | Trail / Crawler | Trail / Crawler | Trail / Crawler |
| Scale | 1/10 | 1/10 | 1/10 | 1/10 |
| Size (L × W × H) | 20.7 × 10.6 × 11.2 in | 20.6 × 9.8 × 10.1 in | 22.3 × 10.6 × 10.8 in | 22.2 × 10.6 × 10.9 in |
| Weight | 7.26 lb | 7.43 lb | 7.34 lb | 7.38 lb |
| Skill level | 1 | 1 | 1 | 1 |
| Top speed | Trail Speed | Trail Speed | Trail Speed | Trail Speed |
| In the box | Battery & charger sold separately | Battery & charger sold separately | Battery & charger sold separately | Battery & charger sold separately |
| Runs on | A 2s–3s LiPo or a 6–7-cell NiMH | A 2s–3s LiPo or a 6–7-cell NiMH | A 2s–3s LiPo or a 6–7-cell NiMH | A 2s–3s LiPo or a 6–7-cell NiMH |
| Ready to run | $694.85completer 2970-3S + AA | $644.85completer 2970-3S + AA | $694.85completer 2970-3S + AA | $694.85completer 2970-3S + AA |
| Links | You’re here | View | View | View |
Specs as Traxxas prints them. Ready to run = the vehicle + the completer pack (battery and charger in one box) listed for that model + AA batteries for the transmitter, at our prices today; other battery options are on each model’s page. Nitro models also need fuel, bought locally. New to RC? How to read this table
Parts & upgrades
Keep your TRX-4 Chevrolet Blazer High Trail Edition running.
Genuine Traxxas replacement parts and upgrades, organized by part number.
Upgrades for your TRX-4 Chevrolet Blazer High Trail Edition
-
High-Torque 600 Metal Gear Servo$159.95 USD -
Digital High-Torque Coreless Servo$79.95 USD -

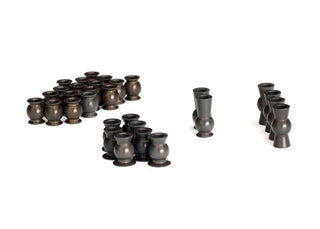

PTFE-Coated Aluminum Hollow Ball Set$39.95 USD -

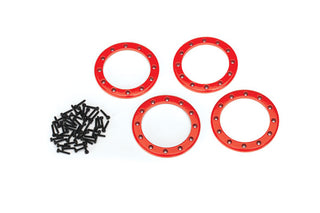

2.2" Red Aluminum Beadlock Rings w/ Screws (4)$29.95 USD
Traxxas · Model 92086-4
Manuals, parts list & exploded views
TRX-4 Chevrolet Blazer High Trail Edition · Open the original manufacturer documents, hosted by RC Hobby Shop.
Parts list
User manual
Complete original documents, including safety instructions. Files open in a new tab.
