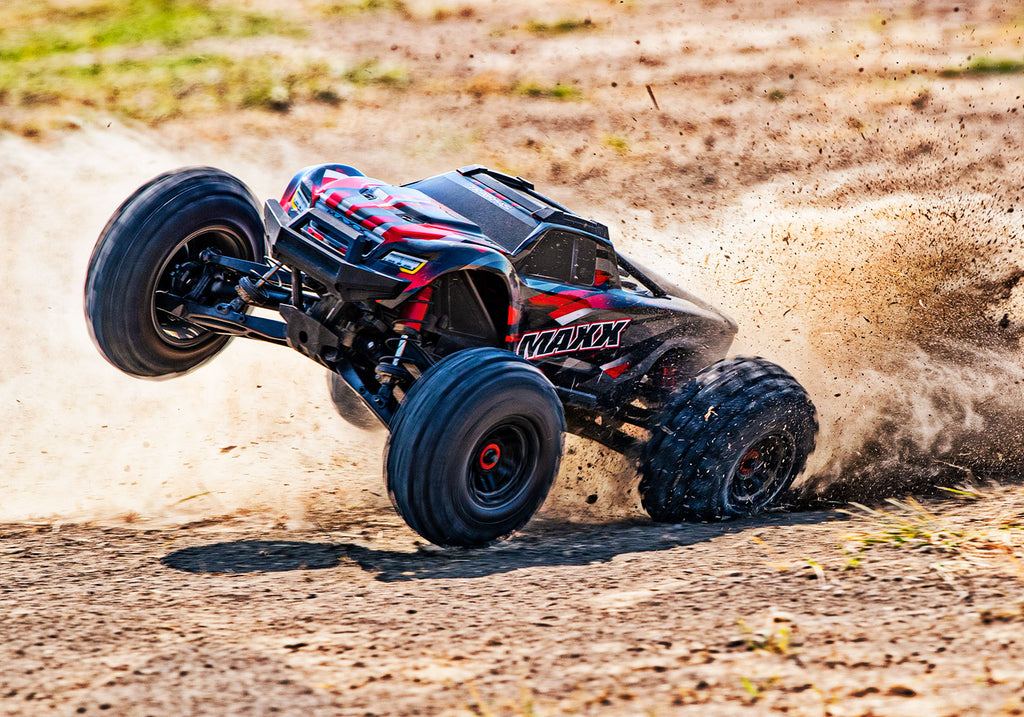

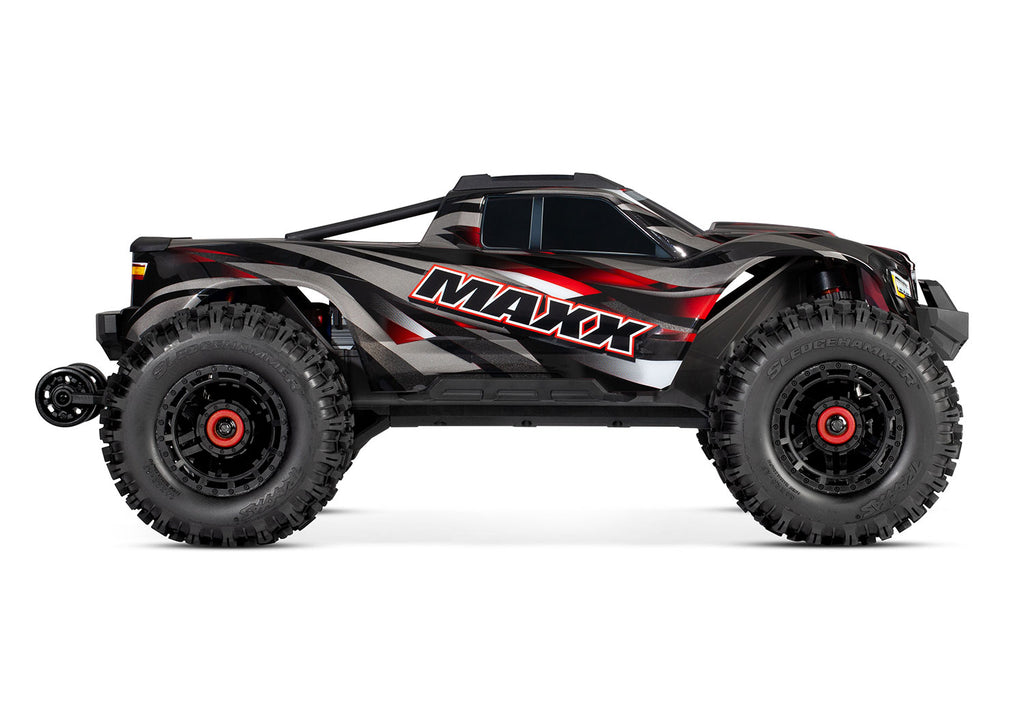

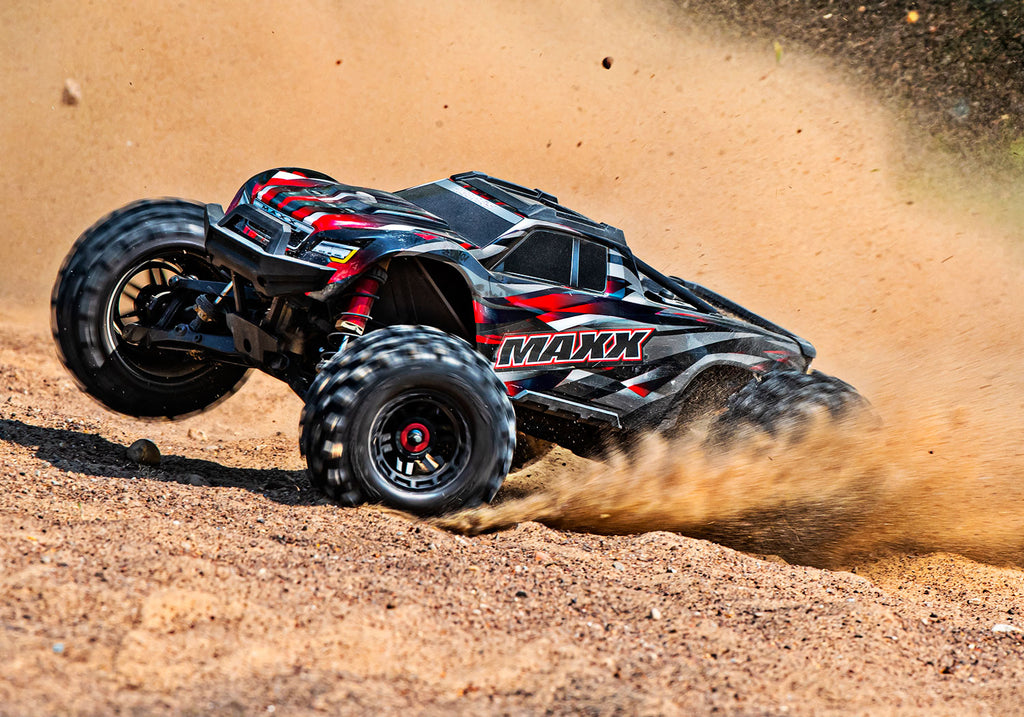

Traxxas 89086-4 Maxx
Red
$599.95 USD
Skip to product information
Available to order
TraxxasModel 89086-4
Maxx
Monster truck · Battery & charger sold separately
- Scale
- Maxx scale
- Drive
- 4WD
- Power
- Brushless
- Top speed
- 60+ mph
Battery and charger sold separately — see Complete your setup.
$599.95 USD
- Ships in 1–2 business daysIn-stock orders leave Houston, TX by UPS or USPS. Free standard shipping on $99+.
- Free store pickupSouthwest Fwy, Houston. We email when it's ready. Usually ready within 24 hours on days we're open.
- Genuine parts, 30-day returnsEverything comes through authorized dealer accounts. Unopened items can come back within 30 days.
Shipping & pickup
Free standard shipping covers the contiguous 48 states, big trucks included; orders under $99 pay $5.95–$8.95. Tracking is emailed when your order leaves. Batteries ship ground only and can't go to P.O. boxes, APO/FPO, Alaska or Hawaii. Full shipping policy
Picking up in Houston? Choose Pick up at checkout and wait for our ready-for-pickup email.
Returns
30 days from delivery on new, unopened items. Opened-but-unused items may carry a 15% restocking fee; batteries, chargers, powered electronics and painted bodies are final sale once opened. Full refund policy
Warranty & support
Everything we sell is genuine and covered by the manufacturer's warranty (Traxxas, Horizon Hobby and the other brands we carry). If something arrives defective, contact us within 7 days and we'll make it right. Fitment or upgrade questions? Call 832-288-4789 or email support@rchobbyshop.com.
Part # 89086-4-RED · Traxxas model 89086-4
Complete your setup
Everything the Maxx needs to run
The Maxx runs on a 3s–4s LiPo. NiMH is not supported. Battery and charger are sold separately. Choose how you want to cover them; nothing goes in your cart until you press Add.
Optional extras are never added for you: Upgrades for the Maxx
Overview
1/10 Scale 4WD Brushless Electric Monster Truck
Maxx turns up the dial on fun with even more of what you crave. Maxx doubles down on strength and durability with a longer and wider stance for greater stability to match its blistering 60+ mph performance.
The Traxxas X-Maxx® is a giant that forever changed the face of RC monster trucks. Its radical cutting-edge design, massive size, brutal strength, and unmatched power transformed X-Maxx into the stuff of legends. The 1/10 scale Traxxas Maxx® expertly packages X-Maxx's innovative design elements and jaw-dropping strength into a lighter, more compact, more ferocious beast. Armed with WideMaxx® suspension and Sledgehammer® tires, Maxx stands ready for high-speed aggressive action from the start. Let the fun begin!
Read more Show less
Features
- 55+ mph out of the box using single 4s LiPo battery (sold separately)
- 60+ mph with optional gearing and single 4s LiPo battery (sold separately)
- VXL-4s™ Waterproof Electronic Speed Control3s–4s LiPo compatible, built-in cooling fan, real-time telemetry via Traxxas Link, machined heat sinks, 10-gauge silicone wire, integrated protection circuits, LED status lights
- Velineon® 540XL Brushless Motorlong format brushless motor, 4-pole 2400 Kv, 5 mm output shaft, aluminum heat sink, cooling fan
- Traxxas Stability Management®helps prevents spinouts and loss of control, adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4 GHz High Output Radio SystemTraxxas Link enabled, 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports, automatically stores and loads settings for up to 30 Traxxas Link-enabled models, multi-function knob, adjustable steering and throttle percentage (dual rates), adjustable steering and throttle sensitivity (exponential), telemetry-ready 5-channel micro receiver
- Clipless Body Mount Systemquick one-hand installation and removal, uses pivoting rear latch mechanism, eliminates body posts and clips, reinforced for extra protection against tearing
- Drivelinefull-time shaft-driven 4-wheel drive, Torque-Biasing Center Drive™ absorbs shocks and distributes power, sealed, silicone fluid-filled diffs with large module ring and pinion gears, splined outdrives attached with external thru-bolt method, heavy-duty Cush Drive™, extreme-duty telescoping driveshafts, splined aluminum center driveshaft
- Secure Motor Mounting Systemprecision, preset gear mesh adjustments, motor retention separate from gear mesh, 17 mm keyed wheel hex with 5 mm nut, full-length motor cradle
- Modular Composite Chassisextended design interlocks with front and rear bulkheads, absorbs and distributes impact energy, easy to service and access components, driveline is sealed in the chassis to keep out dirt and grit
- Easy Battery Accessextended battery tray accepts 6700 mAh 4-cell LiPo battery, battery is protected deep in the chassis, battery hold-downs pivot for easy access, more secure than conventional retention systems
- Bumperstough energy absorbing front and rear bumpers, lower front and rear skids for impact and abrasion resistance, integrated nerf bars for side impact resistance, wheelie bar with integrated carry handle
Show all 17 features Show fewer features
- Large-scale high-output steering servo285 oz-in of torque, 0.18 sec transit speed, triangulated mounting system to fully support case, heavy-duty double-shear bellcranks
- SuspensionWideMaxx® double-shear suspension arms (1.57" (40 mm) wider for improved handling, tough composite formula resists impact damage even in cold weather), engineered to optimize suspension travel and steering angles, all critical suspension points have double shear strength, 4 mm machined pivot balls, C-hub and steering block geometry maximizes steering angle, fixed high-strength camber and toe links, steel upper and lower tie bars
- GT-Maxx® Shocksmachined aluminum threaded body, extra-large bore and capacity, large-diameter damper shaft, lower seal cartridge with dual X-rings, adjustable upper spring retainer, plastic shock caps with pivot balls, lower spring perches bolted on
- Wheels/Tirestough 2.8" wheels with keyed 17 mm hex receptor, Sledgehammer® extreme tires for sure-footed traction, 1-piece foam inserts, pre-glued and ready for action, TSM® rated
- Full contact sealed bearings used in exposed locations
What's in the box
- Maxx Ready-To-Race monster truck with Traxxas 540XL brushless motor
- VXL-4s waterproof electronic speed control with integrated telemetry
- TQi™ 2.4 GHz radio system
- High quality maintenance tools
What you'll need
- LiPo Battery Traxxas recommends a 4-cell 14.8 V Power Cell LiPo battery for maximum performance. A 3-cell 11.1 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
- Charger The Traxxas EZ-Peak® Live charger 2971 is recommended for easy and fast charging performance.
- AA Alkaline Batteries Four AA alkaline batteries for the transmitter.
Specifications
| Type | Monster Truck |
|---|---|
| Speed | 60+ mph with 4s LiPo battery and optional gearing |
| Skill Level | 4 |
| Scale | 1/10 |
| Weight | 10.40 pounds (4.7 kg) |
| Length | 22.50 inches (572 mm) |
| Width | 15.95 inches (405 mm) |
| Front Track | 15.95 inches (405 mm) |
| Rear Track | 15.95 inches (405 mm) |
| Height | 9.12 inches (232 mm) |
| Wheelbase | 13.85 inches (352 mm) |
| Center Ground Clearance | 2.6 inches (67 mm) |
| Driveline | Shaft-driven 4WD |
| Transmission | Single speed |
| Differential Type | Sealed, hardened steel bevel, limited slip |
| Gear Ratio Internal | 12.37:1 |
| Gear Pitch | 1.0 metric pitch |
| Steering Servo | 2090 digital high-torque waterproof (285 oz-in) |
| Radio System | TQi™ 2.4 GHz transmitter with TSM® receiver |
| Battery Compartment Specs | 186 mm X 48 mm X 43 mm |
|---|---|
| Motor Name | 540XL |
| Motor Type | 2400 Kv sensorless brushless |
| Motor Weight | 317 g (11.1 8 oz) |
| Motor Length | 3.58 inches (91 mm) |
| Motor Diameter | 1.41 inches (36 mm) |
| Motor Shaft Size | 5 mm |
| Motor Connector Type | 6.5 mm bullet connectors |
| ESC Name | Velineon VXL-4s |
| ESC Type | Brushless |
| ESC Case Size | 72 mm L x 59 mm W x 49 mm H |
| ESC Weight | 7.09 ounces (201 grams) |
| ESC Motor Connectors | 6.5 mm bullet connectors |
| ESC Battery Connectors | Traxxas High-Current Connectors |
| Tires | Sledgehammer® extreme tires, 2.8", pre-glued, 1-piece foam inserts |
| Wheels | Tough 2.8" wheels with keyed 17 mm hex receptor |
| Top Speed | 55+ mph out of the box; 60+ mph with optional gearing |
| Part Number | 89086-4 |
Compare
How the Maxx compares
Similar models we carry, side by side.
| Spec | ||||
|---|---|---|---|---|
| Type | Monster Truck | Monster Truck | Monster Truck | Monster Truck |
| Scale | 1/10 | 1/10 | 1/8 | X-Truck |
| Size (L × W × H) | 22.5 × 16.0 × 9.1 in | 22.5 × 16.0 × 9.1 in | 23.8 × 18.1 × 8.4 in | 30.7 × 21.3 × 14.0 in |
| Weight | 10.4 lb | 10.2 lb | 12.74 lb | 19.1 lb |
| Skill level | 4 | 4 | 4 | 6 |
| Top speed | 60+ mphwith 4s LiPo battery and optional gearing | 60+ mphwith 4s LiPo battery and optional gearing | 70+ mphwith 6s LiPo battery and optional gearing | 50+ mphwith two 4s LiPo batteries and optional speed gear |
| In the box | Battery & charger sold separately | Battery & charger sold separately | Battery & charger sold separately | Battery & charger sold separately |
| Runs on | A 3s–4s LiPo | A 3s–4s LiPo | Two 3s LiPo packs | Two 4s LiPo packs |
| Ready to run | $824.85completer 2996X + AA | $1,124.85completer 2996X + AA | $1,004.85completer 2990 + AA | $1,704.85completer 2997 + AA |
| Links | You’re here | View | View | View |
Specs as Traxxas prints them. Ready to run = the vehicle + the completer pack (battery and charger in one box) listed for that model + AA batteries for the transmitter, at our prices today; other battery options are on each model’s page. Nitro models also need fuel, bought locally. New to RC? How to read this table
