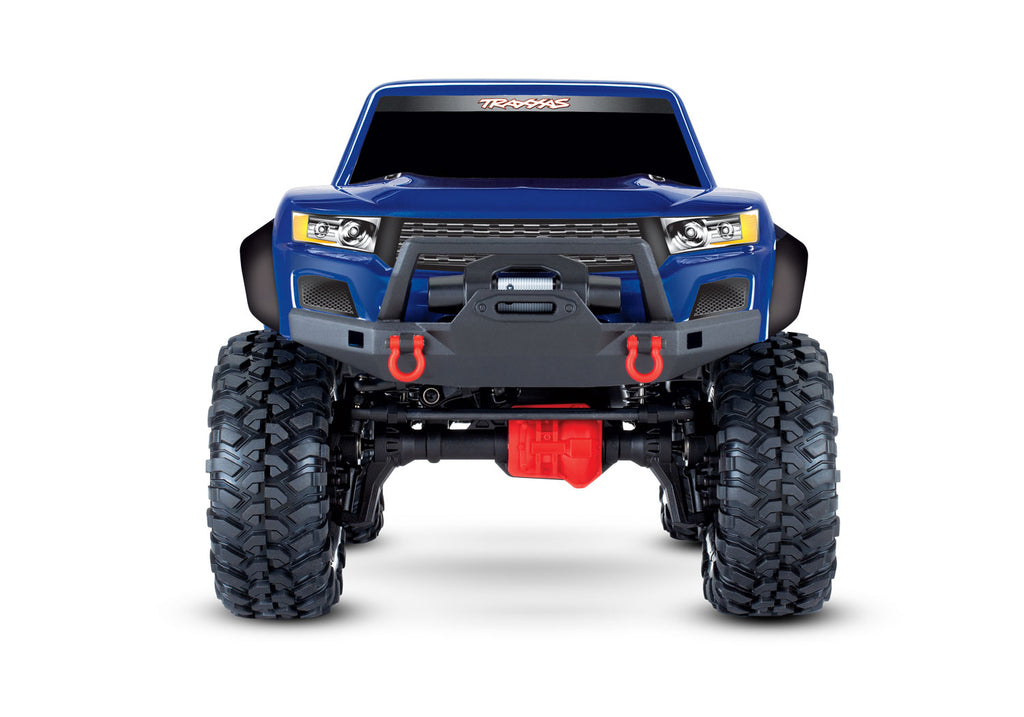

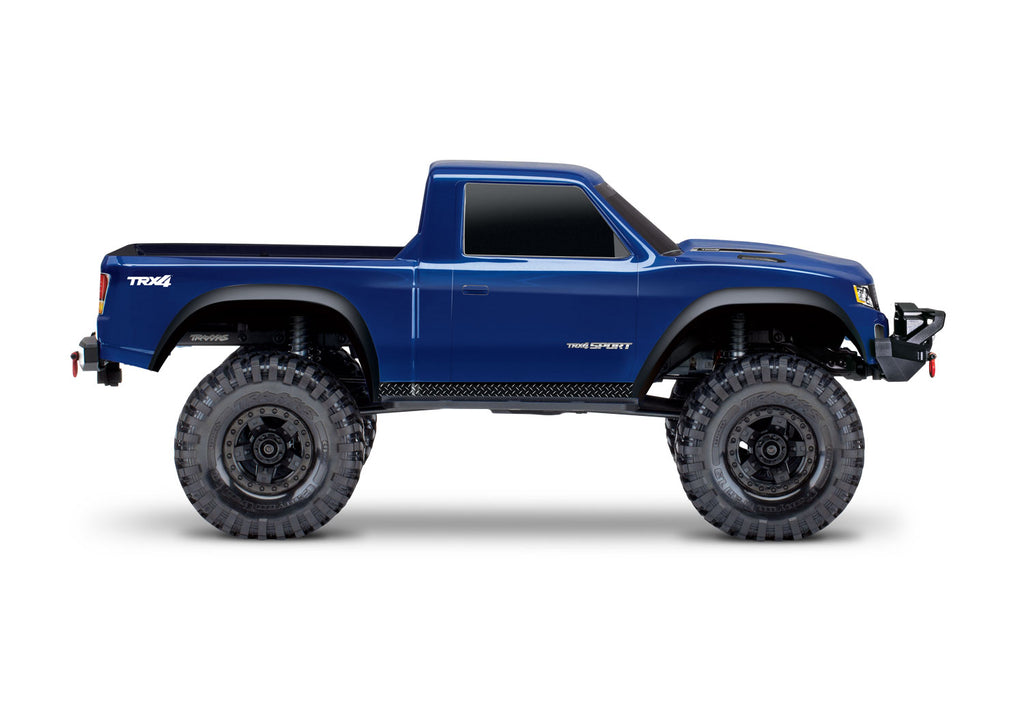

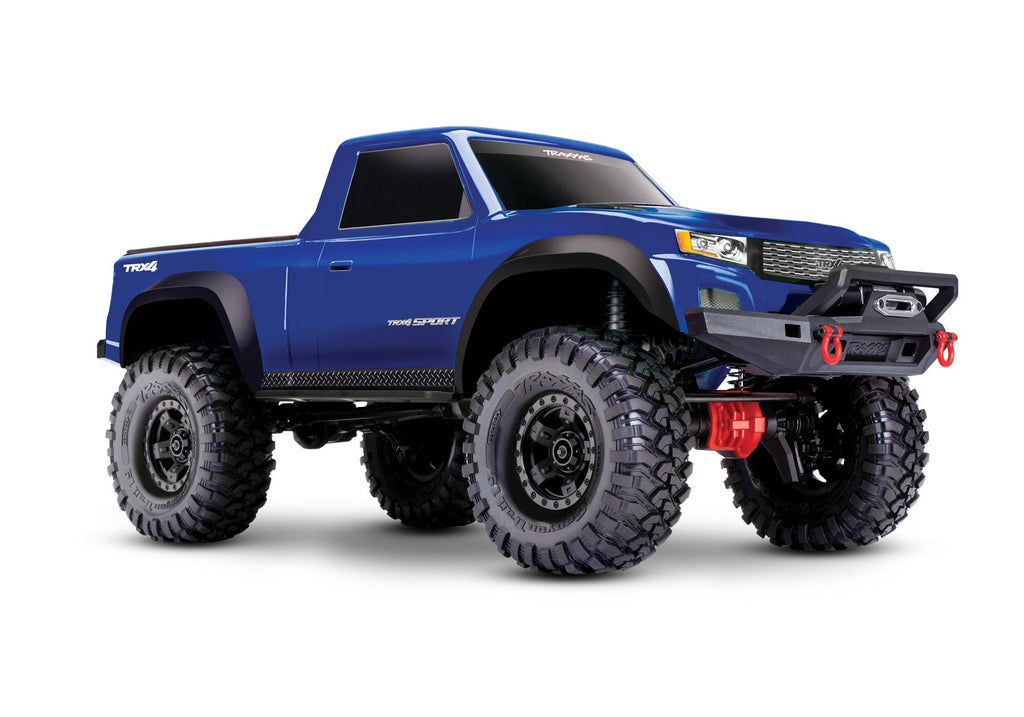

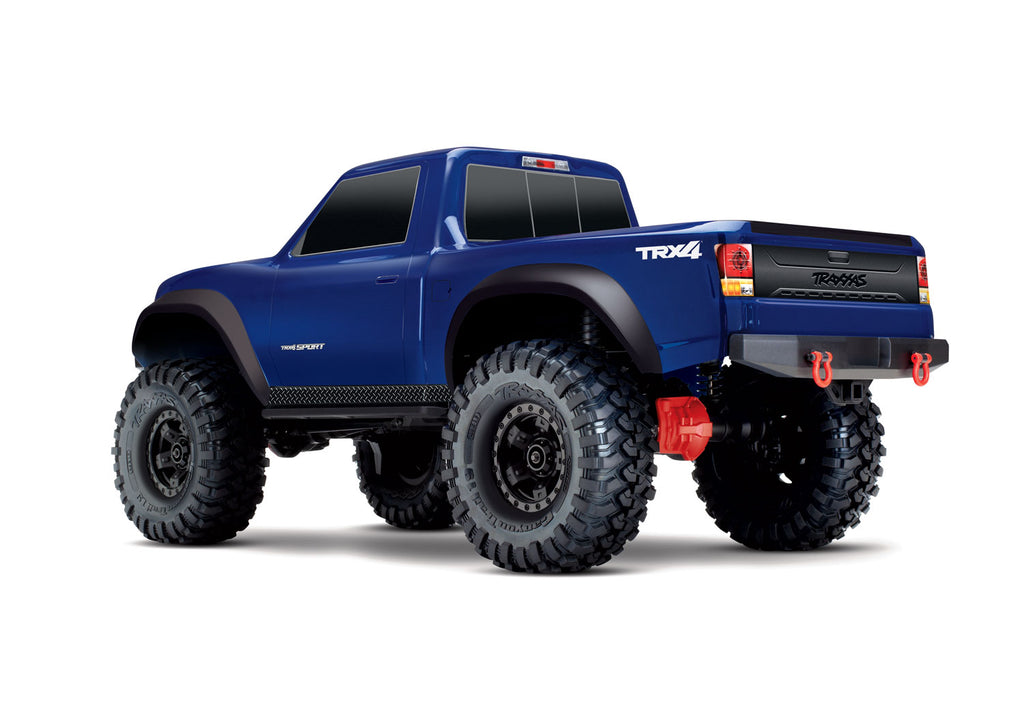

Traxxas 82224-4 TRX-4 Sport
Blue
$349.95 USD
Skip to product information
Available to order
TraxxasModel 82224-4
TRX-4 Sport
Trail crawler · Battery & charger sold separately
- Scale
- 1/10
- Drive
- 4WD
- Power
- Brushed
- Battery
- Sold separately
Battery and charger sold separately — see Complete your setup.
$349.95 USD
- Ships in 1–2 business daysIn-stock orders leave Houston, TX by UPS or USPS. Free standard shipping on $99+.
- Free store pickupSouthwest Fwy, Houston. We email when it's ready. Usually ready within 24 hours on days we're open.
- Genuine parts, 30-day returnsEverything comes through authorized dealer accounts. Unopened items can come back within 30 days.
Shipping & pickup
Free standard shipping covers the contiguous 48 states, big trucks included; orders under $99 pay $5.95–$8.95. Tracking is emailed when your order leaves. Batteries ship ground only and can't go to P.O. boxes, APO/FPO, Alaska or Hawaii. Full shipping policy
Picking up in Houston? Choose Pick up at checkout and wait for our ready-for-pickup email.
Returns
30 days from delivery on new, unopened items. Opened-but-unused items may carry a 15% restocking fee; batteries, chargers, powered electronics and painted bodies are final sale once opened. Full refund policy
Warranty & support
Everything we sell is genuine and covered by the manufacturer's warranty (Traxxas, Horizon Hobby and the other brands we carry). If something arrives defective, contact us within 7 days and we'll make it right. Fitment or upgrade questions? Call 832-288-4789 or email support@rchobbyshop.com.
Part # 82224-4-BLUE · Traxxas model 82224-4
Complete your setup
Everything the TRX-4 Sport needs to run
The TRX-4 Sport runs on a 2s–3s LiPo or a 6–7-cell NiMH. Battery and charger are sold separately. Choose how you want to cover them; nothing goes in your cart until you press Add.
Optional extras are never added for you: Upgrades for the TRX-4 Sport
Overview
TRX-4® Sport: 1/10 scale 4X4 trail truck, fully-assembled, waterproof electronics, Ready-To-Explore®, with TQ™ 2.4 GHz 2-channel radio system, XL-5™ HV speed control, and painted body.
TRX-4® Sport combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon Trail™ tires, and a lightweight pickup truck body for a leaner, performance-focused new TRX-4. The Sport's unique bumpers, wheels, and body were designed for increased climbing versatility. Whether it's a fun trail run or a hardcore technical crawl, the TRX-4 Sport's capability and performance-built approach takes your outdoor adventure to a new level.
Read more Show less
Features
- Tough, Clipless Pickup Truck BodyClipless design for smooth body appearance, Rugged internal body cage for added rigidity, Low profile bumpers for increased clearance
- Trail-Tuned XL-5™ HV Waterproof Electronic Speed ControlFully waterproof design, Five drive profiles (Sport Mode, Race Mode, Training Mode, Trail Mode, Crawl Mode), Traxxas EZ-Set® one-button setup, Large, efficient heat sink, Wide voltage latitude, Two stage low voltage protection (LVD)
- Titan® 550 MotorPowerful Titan 21T reverse rotation motor with internal cooling fan, Precise preset gear mesh adjustments, Motor retention separate from gear mesh
- TQ™ 2.4 GHz 2-ChannelErgonomic transmitter with internal antenna, Traxxas 6519 3-channel micro receiver with fail-safe security, Patented O-ring sealed watertight receiver box
- Rigid Steel Frame1.5 mm thick steel frame rails increase torsional rigidity, Innovative design allows four wheelbase positions, Adjustable rear shock tower positions, Bumpers adjust fore and aft, Rugged rock rails adjust for width
- Innovative Battery CompartmentHinged battery strap allows quick and easy battery access, No pins to lose, Accommodates different height batteries, Accepts full-size long battery packs
- Portal AxlesIncrease ground clearance, Eliminate torque twist, Steel gears, Improve axle geometry and reduce strain on driveshafts
- DrivelineFull-time shaft driven 4-wheel drive, Tough 6 mm stub axles, Steel front CV driveshafts, Hardened steel rear axle shafts, Spool-locked front and rear differentials
- TransmissionSingle-speed with steel gears, Dual horizontal shafts, Twin friction plate slipper clutch, Easily removed for servicing
- SteeringChassis mounted 2075X metal gear digital servo, Superior 45° steering angle, Direct steering (no servo saver), Steering geometry corrected for bump steer
- SuspensionFront 3 link with panhard, Rear triangulated 4 link, Heavy-duty rod ends with steel hollow balls, 5 mm diameter steel link rods
- Aluminum GTS ShocksOil-filled coilover GTS shocks, Silver-anodized aluminum bodies, Threaded bodies with collars, Silky smooth damping, O-ring cap seal and dual X-ring shaft seals
- Wheels and TiresRugged black 5-spoke wheels, Pre-mounted 1.9" Canyon Trail tires with trail-tuned foam inserts, Trail tuned S1 rubber compound, 12 mm steel hex
What's in the box
- TRX-4 trail truck
- XL-5 HV waterproof electronic speed control
- Titan® 21T reverse rotation motor
- TQ 2.4 GHz radio system
- High quality maintenance tools
What you'll need
- Batteries: TRX-4 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries.
- Charger: The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance.
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
Specifications
| Scale | 1/10 |
|---|---|
| Type | Trail Truck / Crawler |
| Skill Level | 1 |
| Weight | 5.79 pounds (2.63 kg) |
| Length | 21.93 inches (557 mm) |
| Width | 9.78 inches (249 mm) |
| Height | 9.47 inches (241 mm) |
| Wheelbase | 12.28 inches (312 mm) |
| Front Track | 9.78 inches (249 mm) |
| Rear Track | 9.78 inches (249 mm) |
| Center Ground Clearance | 3.14 inches (80 mm) |
| Driveline | Shaft-driven 4WD |
| Transmission | Single speed |
| Differential Type | Spool (no differential) |
| Gear Pitch | 32 pitch |
| Steering Servo | 2075X metal gear, digital high-torque waterproof |
| Radio System | TQ™ 2.4 GHz 2-channel radio |
| Motor | Titan® 21T Reverse Rotation (High-torque brushed motor) |
| Motor Weight | 8.47 ounces (240 g) |
|---|---|
| Motor Length | 3.07 inches (78 mm) overall, 2.25 inches (57 mm) can length |
| Motor Diameter | 1.53 inches (39 mm) |
| Motor Shaft Size | 3 mm |
| Motor Connector | Bullet |
| ESC | XL-5™ HV |
| ESC Type | Brushed |
| ESC Case Size | 1.23 x 2.18 x 1.04 inches (31 x 55 x 26 mm) |
| ESC Weight | 2.60 ounces (74 g) |
| ESC Motor Connectors | Bullet |
| ESC Battery Connectors | Traxxas High-Current Connector |
| ESC Power Wire | 14 gauge |
| Battery Compartment Specs | 159 mm X 47 mm X 23 mm, 26 mm |
| Top Speed | Trail Speed |
| Tires | Pre-mounted 1.9" Canyon Trail tires with trail-tuned foam inserts |
| Wheels | Rugged black 5-spoke wheels, 12 mm steel hex |
| Battery | Sold Separately |
| Charger | Sold Separately |
Compare
How the TRX-4 Sport compares
Similar models we carry, side by side.
| Spec | ||||
|---|---|---|---|---|
| Type | Trail Truck / Crawler | Trail / Crawler | Trail Truck / Crawler | Trail / Crawler |
| Scale | 1/10 | 1/10 | 1/10 | 1/10 |
| Size (L × W × H) | 21.9 × 9.8 × 9.5 in | 22.0 × 10.6 × 10.8 in | 22.3 × 9.8 × 9.5 in | 23.0 × 9.8 × 9.4 in |
| Weight | 5.79 lb | 7.04 lb | 5.79 lb | 6.42 lb |
| Skill level | 1 | 1 | 1 | 1 |
| Top speed | Trail Speed | — | Trail Speed | Trail Speed |
| In the box | Battery & charger sold separately | Battery & charger sold separately | Battery & charger sold separately | Battery & charger sold separately |
| Runs on | A 2s–3s LiPo or a 6–7-cell NiMH | A 2s–3s LiPo or a 6–7-cell NiMH | A 2s–3s LiPo or a 6–7-cell NiMH | A 2s–3s LiPo or a 6–7-cell NiMH |
| Ready to run | $494.85completer 2970-3S + AA | $524.85completer 2970-3S + AA | $594.85completer 2970-3S + AA | $694.85completer 2970-3S + AA |
| Links | You’re here | View | View | View |
Specs as Traxxas prints them. Ready to run = the vehicle + the completer pack (battery and charger in one box) listed for that model + AA batteries for the transmitter, at our prices today; other battery options are on each model’s page. Nitro models also need fuel, bought locally. New to RC? How to read this table
Parts & upgrades
Keep your TRX-4 Sport running.
Genuine Traxxas replacement parts and upgrades, organized by part number.
Traxxas · Model 82224-4
Manuals, parts list & exploded views
TRX-4 Sport · Open the original manufacturer documents, hosted by RC Hobby Shop.
Parts list
User manual
Complete original documents, including safety instructions. Files open in a new tab.
