Traxxas 3370 1/16 Velineon Brushless Power System
$169.95 USD
Skip to product information
Available to order
TraxxasPart # 3370
1/16 Velineon Brushless Power System
Brushless Power System
$169.95 USD
- Ships in 1–2 business daysIn-stock orders leave Houston, TX by UPS or USPS. Free standard shipping on $99+.
- Free store pickupSouthwest Fwy, Houston. We email when it's ready. Usually ready within 24 hours on days we're open.
- Genuine parts, 30-day returnsEverything comes through authorized dealer accounts. Unopened items can come back within 30 days.
Shipping & pickup
Free standard shipping covers the contiguous 48 states, big trucks included; orders under $99 pay $5.95–$8.95. Tracking is emailed when your order leaves. Batteries ship ground only and can't go to P.O. boxes, APO/FPO, Alaska or Hawaii. Full shipping policy
Picking up in Houston? Choose Pick up at checkout and wait for our ready-for-pickup email.
Returns
30 days from delivery on new, unopened items. Opened-but-unused items may carry a 15% restocking fee; batteries, chargers, powered electronics and painted bodies are final sale once opened. Full refund policy
Warranty & support
Everything we sell is genuine and covered by the manufacturer's warranty (Traxxas, Horizon Hobby and the other brands we carry). If something arrives defective, contact us within 7 days and we'll make it right. Fitment or upgrade questions? Call 832-288-4789 or email support@rchobbyshop.com.
Part # 3370
Overview

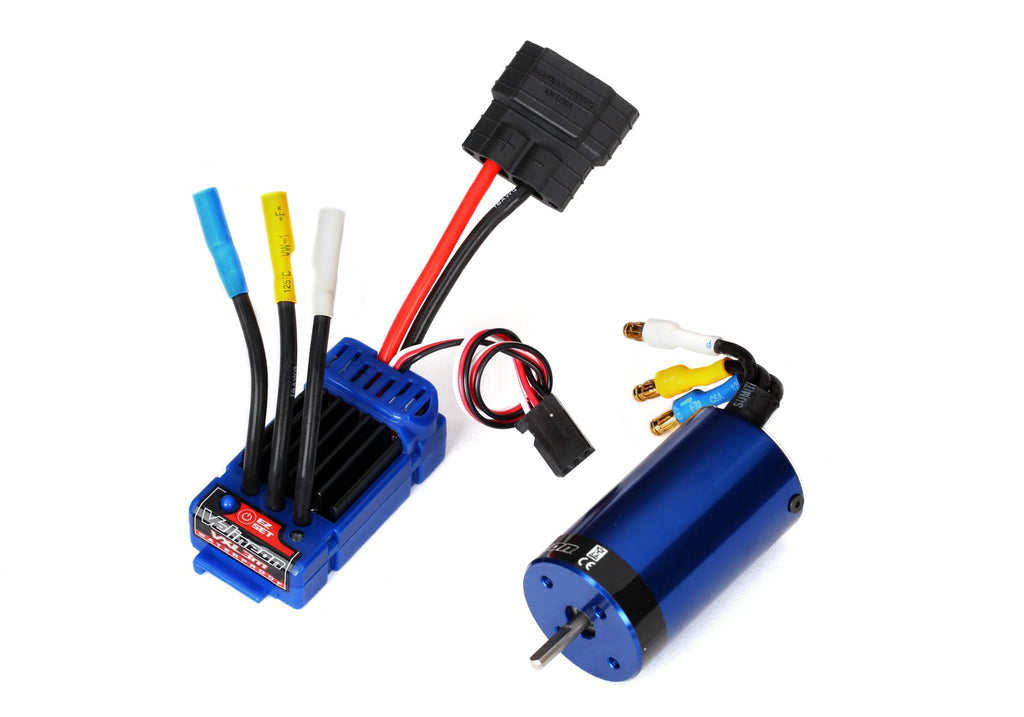

Like its larger 1/10 scale counterpart, the 1/16 scale Velineon® VXL-3m™ electronic speed control and 380-size 4000 Kv brushless motor are carefully engineered to work seamlessly together for maximum power flow.
High-frequency transistors and advanced circuit design delivers incredibly smooth and refined throttle control with Traxxas EZ-Set® one-button convenience. Traxxas' exclusive patented Training Mode™ limits full throttle to 50% for young or inexperienced drivers. For the most advanced users, the VXL-3m is equipped with two-stage low voltage detection to allow LiPo battery use, including powerful 11.1-volt 3S packs!
Read more Show less
Features

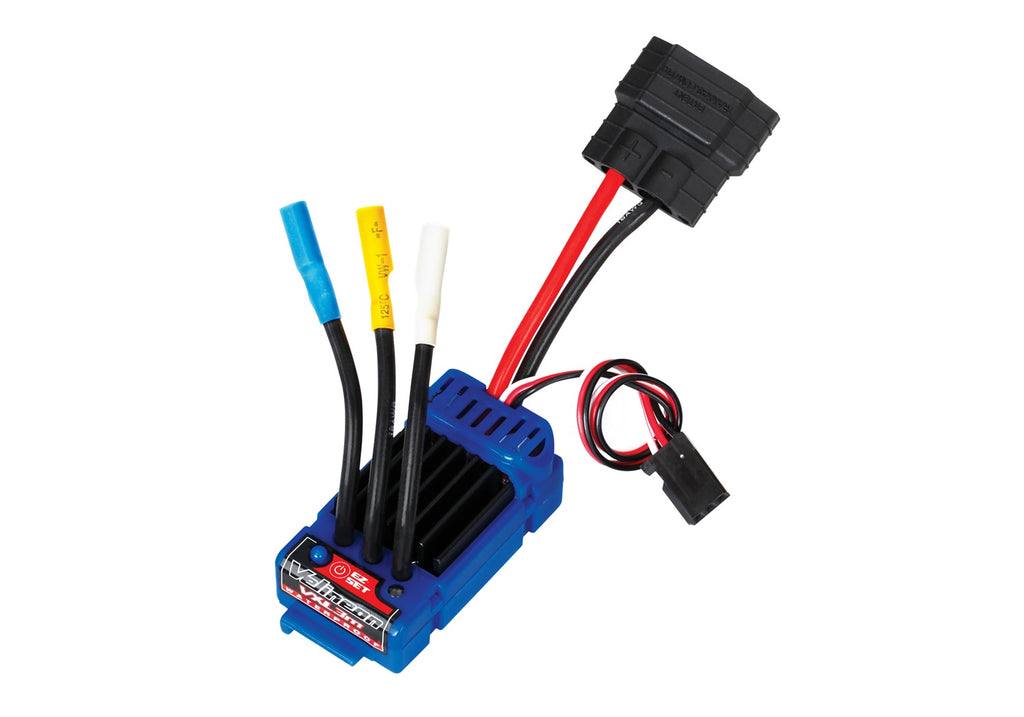

- Velineon® VXL-3m ESC Features
- Built-in two-stage low voltage detection for LiPo batteries
- Fully waterproof construction
- Multi-color status LED
- Two-stage thermal shutdown protection
- Three drive profiles
- Sport Mode – Fwd / Brake / Rev, Race Mode – Fwd / Brake, Training Mode – 50% Fwd / 100% Brake / 50% Rev
- Patented Traxxas High-Current Connector
- Allows unrestricted power flow from the battery to the ESC
- Battery over-voltage protection
- Finned aluminum heatsink dissipates heat

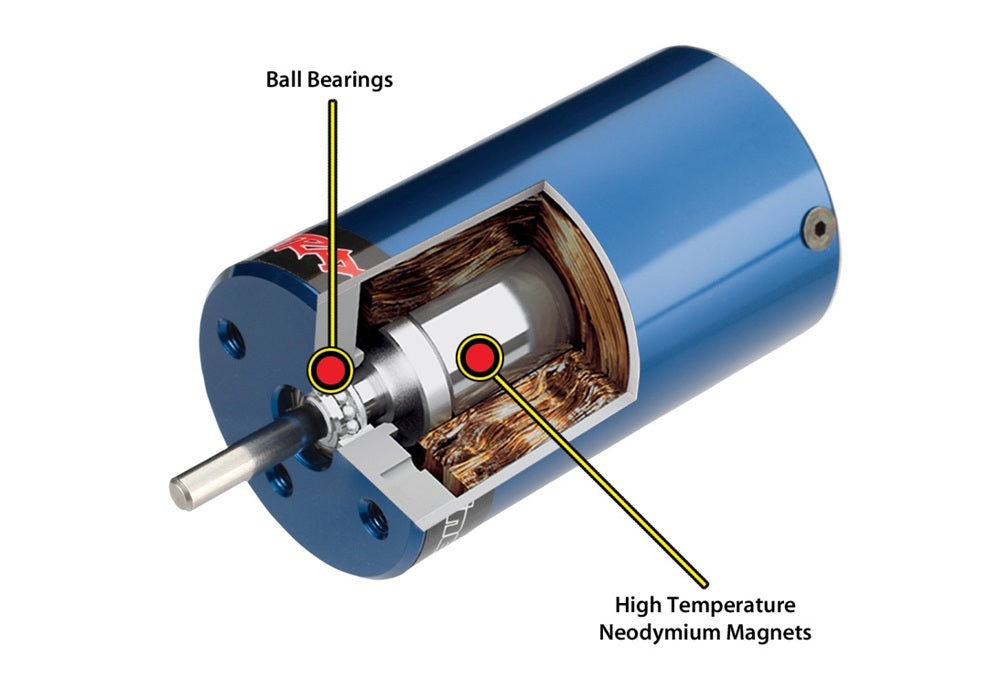

- Velineon 380 Brushless Motor Features
- Ultra high-temperature sintered Neodymium magnets
- Provide massive torque and linear power
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- 8-Turn, 4000 Kv
- Rebuildable
Specifications
| Motor Name | Velineon® 380 |
|---|---|
| Motor Type | Sensorless brushless |
| Motor Weight | 4.49 ounces (140 g) |
| Motor Length | 2.4 inches (61 mm) overall length, 1.9 inches (48 mm) can length |
| Motor Diameter | 1.09 inches (28 mm) |
| Motor Shaft Size | 3 mm |
| Motor Connector Type | 3.5 mm bullet |
| ESC Name | Waterproof Velineon® VXL-3m™ |
|---|---|
| ESC Case Size | 1.06 inches (27 mm) / 1.85 inches (47 mm) / 0.87 inches (22 mm) |
| ESC Weight | 1.34 ounces (38 g) |
| ESC Motor Connectors | 3.5 mm bullet connectors |
| ESC Battery Connectors | Traxxas High-Current Connector |
| ESC Power Wire | 16 gauge |
