Traxxas 2255 — Traxxas 2255 Digital High-Torque Brushless Servo

Traxxas 2255 Digital High-Torque Brushless Servo

$99.95 USD
Skip to product information
Traxxas 2255 — Traxxas 2255 Digital High-Torque Brushless Servo

TraxxasPart # 2255

Available to order

Digital High-Torque Brushless Servo

Servo

$99.95 USD

Free standard shipping Contiguous US · in-stock orders ship in 1–2 business days

  • Ships in 1–2 business daysIn-stock orders leave Houston, TX by UPS or USPS. Free standard shipping on $99+.
  • Free store pickupSouthwest Fwy, Houston. We email when it's ready. Usually ready within 24 hours on days we're open.
  • Genuine parts, 30-day returnsEverything comes through authorized dealer accounts. Unopened items can come back within 30 days.
Shipping & pickup

Free standard shipping covers the contiguous 48 states, big trucks included; orders under $99 pay $5.95–$8.95. Tracking is emailed when your order leaves. Batteries ship ground only and can't go to P.O. boxes, APO/FPO, Alaska or Hawaii. Full shipping policy

Picking up in Houston? Choose Pick up at checkout and wait for our ready-for-pickup email.

Returns

30 days from delivery on new, unopened items. Opened-but-unused items may carry a 15% restocking fee; batteries, chargers, powered electronics and painted bodies are final sale once opened. Full refund policy

Warranty & support

Everything we sell is genuine and covered by the manufacturer's warranty (Traxxas, Horizon Hobby and the other brands we carry). If something arrives defective, contact us within 7 days and we'll make it right. Fitment or upgrade questions? Call 832-288-4789 or email support@rchobbyshop.com.

Part # 2255

Overview

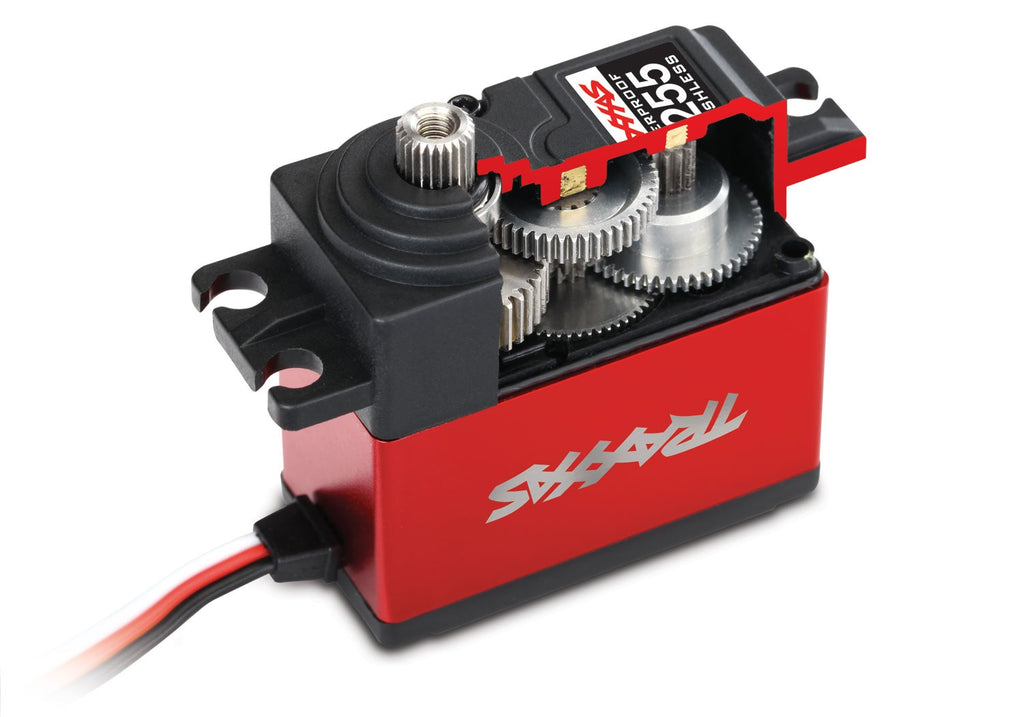

The Traxxas High-Torque 400 Red servo combines maximum steering authority with a long list of high-performance features. The servo utilizes full metal gears, dual ball bearings, and an aluminum center section for added heat dissipation. A cutting edge brushless motor provides 400 ounce-inches of torque for extreme applications. The High-Torque 400 servo is fully waterproof, not just "water resistant" and drops into most 1/10 Traxxas vehicles for that perfect factory fit.

With over 3 times more torque than the standard 2075 servo, the High-Torque 400 provides noticeably faster turning speed and works great with TSM® equipped vehicles. Traxxas High-Torque servos are the perfect upgrade for high-demand applications like Unlimited Desert Racer, Slash, Stampede, or almost any 1/10 Traxxas vehicle requiring extreme performance. Replace the E-Revo's dual servos with a single 2255 for lighter weight, more torque, and lightning-quick steering response. Elevate your steering performance to the next level with the High-Torque red 400 servo.

Traxxas knows the difference between "water resistant" and waterproof. Traxxas High-Torque servos are completely waterproof to give you the freedom to run when you want, where you want. Power through streams and bogs without fear while trucks with "water resistant" servos are stuck on the sidelines.

The Traxxas High-Torque 400 Red servo represents a huge power upgrade for the TRX-4. When installing this servo, it is required that you use the high-power BEC kit 2262. Installing the BEC is easy with plug and play simplicity. The kit includes a larger receiver box cover to maintain total waterproof integrity and a Y harness for vehicles with LED light kits.

Read more Show less

Specifications

Specifications, part 1 of 2
Motor Type Brushless digital
Operating Voltage 6.0 - 7.4 volts
Torque @ 6 Volts 400 oz-in.
Torque @ 7.4 Volts 505 oz-in.
Speed @ 6 Volts 0.15 sec/60°
Specifications, part 2 of 2
Speed @ 7.4 Volts 0.12 sec/60°
Gear Train All metal gears with bearing support
Output Spline 25T
Case Plastic top/bottom, anodized aluminum center
Weight 64g

Compatibility:

  • Compatible with most Traxxas 1/10 and 1/8 scale electric models
  • Compatible with TRX-4 models using 2262 BEC Kit and 8247X metal servo horn
  • Compatible with Traxxas nitro models using rechargeable 5-cell battery packs
  • Compatible with Maxx using 7749 servo adapter and servo arm from 5345R
  • Not recommended for X-Trucks
  • Does not fit 4-Tec models, XO-1, Unlimited Desert Racer, Spartan, or nitro Jato. Other models may require minor trimming.
